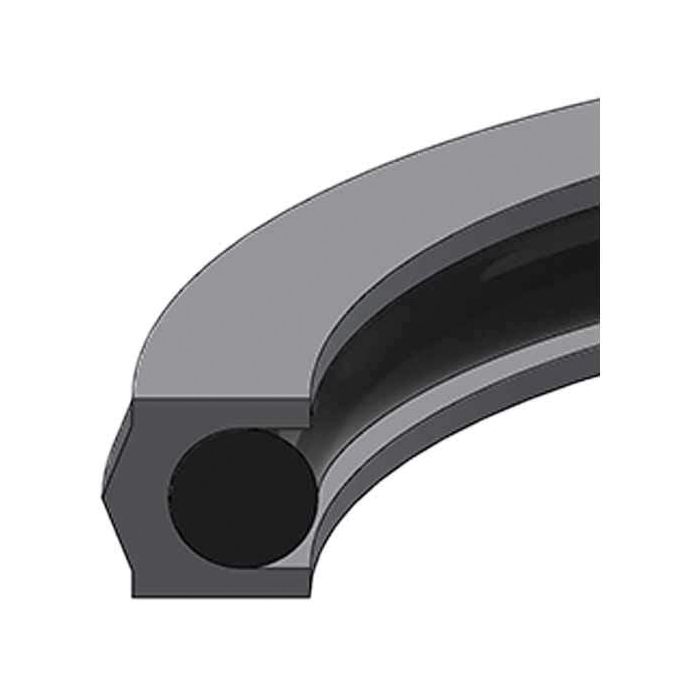

Style PSC Polyurethane Double-Acting Piston Seal, 2.00 Inch Bore Diameter, 1.63 Inch Groove Diameter, Inch Groove Width

Description & Features

The Style PSC Polyurethane Double-Acting Piston Seal features a 2.00-inch bore diameter and a 1.63-inch groove diameter, making it suitable for demanding hydraulic applications.

Constructed with a 95A polyurethane seal and a 70A nitrile energizer, this piston seal provides reliable performance across a temperature range of -65°F to 220°F and pressure range of 0 to 5,000 PSI.

SKU: PSC-326

Supplier Part Number (MPN): PSC-326

Alternate Part Numbers: C1GG32, MI-01037494, MINO-00407X30162

Specifications

Bore 2	Bore Tolerance (in) +0.002/-0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.63	Groove Width Tolerance (in) +0.005 / -0	Piston Dia. F 2.00	Piston Dia. Tolerance (in) +0/-0.002	Seal Height B 0.26	Supplier Part Number PSC-326	Alternate Part Numbers Alternate Part Number C1GG32, Alternate Part Number MI-01037494, Alternate Part Number MINO-00407X30162	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Seal Height B	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Groove Width Tolerance (in)	Piston Dia. Tolerance (in)
PSC-218 Double-Acting Piston Seal	1.5	0.15	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-218-WB Double-Acting Piston Seal	1.5	0.265	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326 Double-Acting Piston Seal	2	0.255	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326-WB Double-Acting Piston Seal	2	0.37	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-330 Double-Acting Piston Seal	2.5	0.255	2.125	2.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-334 Double-Acting Piston Seal	3	0.255	2.624	2.997	+0.002/-0	+0.005 / -0	+0/-0.004
PSC-334-WB Double-Acting Piston Seal	3	0.37	2.624	2.997	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-338 Double-Acting Piston Seal	3.5	0.255	3.125	3.498	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342 Double-Acting Piston Seal	4	0.255	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342-WB Double-Acting Piston Seal	4	0.37	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-350 Double-Acting Piston Seal	5	0.255	4.636	4.999	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-433-WB Double-Acting Piston Seal	6	0.5	5.521	5.999	+0.004/-0	+0.006 / -0	+0/-0.004

Product Questions & Answers (2)

Question by: Kent B on Aug 11, 2025, 9:09 AM

Got a cylinder here with a 2-inch bore and need a double-acting piston seal to replace the one that's wore out. This PSC-326 gonna fit right, or do I need to check anything before ordering?

Answer by: Customer Support on Aug 13, 2025, 6:39 AM

For a 2.00-inch bore, this seal is built to fit with a piston diameter of 1.998 inches and a groove diameter of 1.625 inches. The piston diameter tolerance runs +0/-0.002, so your actual piston needs to fall within that range. One thing worth knowing is that those piston diameter dimensions are based on pistons without wear rings, so if yours has wear rings installed, that changes the fit calculation.

Question by: Neal P on Sep 1, 2025, 2:49 PM

got a cylinder with a 2 inch bore, is this the right piston seal for it?

Answer by: Customer Support on Sep 3, 2025, 6:15 AM

For a 2.00 inch bore, this seal matches that bore size and is a double-acting piston seal. It is built around a 1.625 inch groove diameter and a piston diameter (F) of 1.998 inch with a +0/-0.002 tolerance, so it is meant to fit that style of piston and groove setup.
