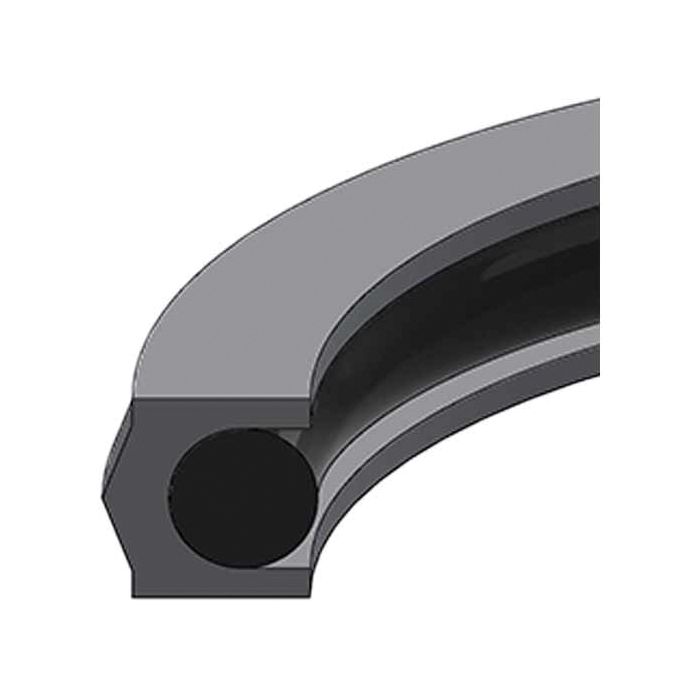

Style PSC Polyurethane Double-Acting Piston Seal, 3.00 Inch Bore Diameter, 2.62 Inch Groove Diameter, Inch Groove Width

Description & Features

This Style PSC Polyurethane Double-Acting Piston Seal is designed for use in hydraulic cylinders and equipment requiring reliable sealing performance.

Manufactured by Hercules Sealing Products, this piston seal features a 3.00 inch bore diameter and a 2.62 inch groove diameter. Constructed with a 95A polyurethane seal and a 70A nitrile energizer, it is suitable for pressures from 0 to 5,000 PSI and temperatures ranging from -65°F to 220°F.

SKU: PSC-334-WB

Supplier Part Number (MPN): PSC-334-WB

Alternate Part Numbers: C1GG35

Specifications

Bore 3	Bore Tolerance (in) +0.004/-0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.62	Groove Width Tolerance (in) +0.005 / -0	Piston Dia. F 3.00	Piston Dia. Tolerance (in) +0/-0.004	Seal Height B 0.37	Supplier Part Number PSC-334-WB	Alternate Part Numbers Alternate Part Number C1GG35	Product Weight 0.03 lbs

Similar Products

Model Number	Bore	Seal Height B	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Groove Width Tolerance (in)	Piston Dia. Tolerance (in)
PSC-218 Double-Acting Piston Seal	1.5	0.15	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-218-WB Double-Acting Piston Seal	1.5	0.265	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326 Double-Acting Piston Seal	2	0.255	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326-WB Double-Acting Piston Seal	2	0.37	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-330 Double-Acting Piston Seal	2.5	0.255	2.125	2.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-334 Double-Acting Piston Seal	3	0.255	2.624	2.997	+0.002/-0	+0.005 / -0	+0/-0.004
PSC-334-WB Double-Acting Piston Seal	3	0.37	2.624	2.997	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-338 Double-Acting Piston Seal	3.5	0.255	3.125	3.498	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342 Double-Acting Piston Seal	4	0.255	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342-WB Double-Acting Piston Seal	4	0.37	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-350 Double-Acting Piston Seal	5	0.255	4.636	4.999	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-433-WB Double-Acting Piston Seal	6	0.5	5.521	5.999	+0.004/-0	+0.006 / -0	+0/-0.004

Product Questions & Answers (2)

Question by: Ray M on Oct 29, 2025, 4:50 PM

Got a cylinder with a 3-inch bore that needs a new piston seal, will this one fit right, and what groove size am I working with?

Answer by: Customer Support on Oct 31, 2025, 6:24 AM

For a 3.00 inch bore, this seal fits a groove diameter of 2.624 inches. The piston diameter it's built around is 2.997 inches, with a tolerance of +0/-0.004. One thing worth noting is that those piston diameter dimensions assume the piston doesn't have wear rings installed. If yours does, that changes the fit calculation.

Question by: Sherry P on May 5, 2025, 8:39 PM

got a 3 inch bore cylinder. is this PSC-334-WB the right size seal for it?

Answer by: Customer Support on May 7, 2025, 6:57 AM

For a 3.00 inch bore, this seal matches that bore size and it’s set up around a 2.624 inch groove diameter, with a piston diameter (F) of 2.997 inches (+0/-0.004). Bore tolerance is +0.004/-0, and the groove width tolerance is +0.005/-0, so it’s meant to fit within those dimensions.
