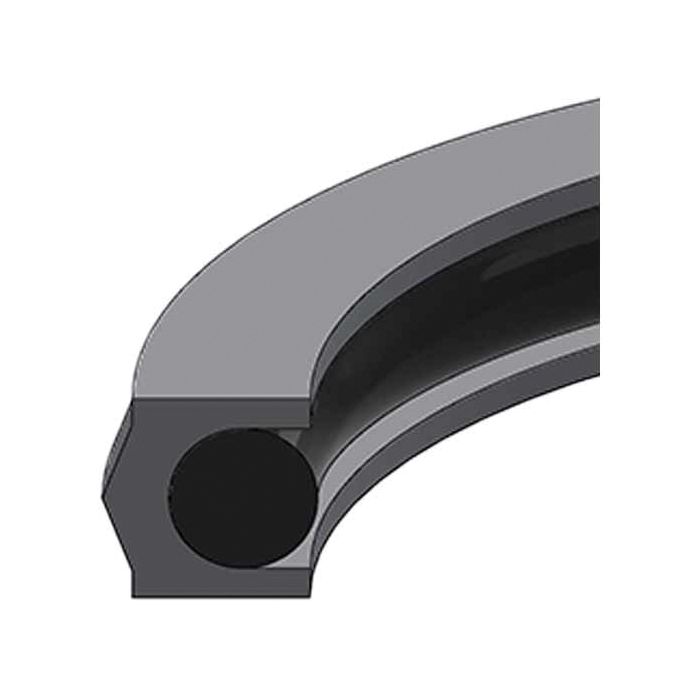

Style PSC Polyurethane Double-Acting Piston Seal, 4.00 Inch Bore Diameter, 3.63 Inch Groove Diameter, Inch Groove Width

Description & Features

The Hercules Sealing Products Style PSC Polyurethane Double-Acting Piston Seal is engineered for demanding hydraulic applications requiring reliable sealing performance. Designed for a 4.00-inch bore diameter and a 3.63-inch groove diameter, this piston seal ensures optimal fit and function. Constructed from durable 95A polyurethane with a 70A nitrile energizer, it offers excellent resistance to wear and tear, suitable for pressures ranging from 0 to 5,000 PSI.

With a temperature range from -65°F to 220°F, this seal is ideal for various industrial environments. The precise groove width tolerance of +0.005/-0 inches ensures consistent sealing efficiency, while the piston diameter tolerance of +0/-0.004 inches provides a snug fit, enhancing the seal's performance and longevity. The Hercules Sealing Products brand guarantees quality and reliability in every component.

SKU: PSC-342-WB

Supplier Part Number (MPN): PSC-342-WB

Alternate Part Numbers: C1KM98

Specifications

Bore 4	Bore Tolerance (in) +0.004/-0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 3.63	Groove Width Tolerance (in) +0.005 / -0	Piston Dia. F 4.00	Piston Dia. Tolerance (in) +0/-0.004	Seal Height B 0.37	Supplier Part Number PSC-342-WB	Alternate Part Numbers Alternate Part Number C1KM98	Product Weight 0.04 lbs

Similar Products

Model Number	Bore	Seal Height B	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Groove Width Tolerance (in)	Piston Dia. Tolerance (in)
PSC-218 Double-Acting Piston Seal	1.5	0.15	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-218-WB Double-Acting Piston Seal	1.5	0.265	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326 Double-Acting Piston Seal	2	0.255	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326-WB Double-Acting Piston Seal	2	0.37	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-330 Double-Acting Piston Seal	2.5	0.255	2.125	2.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-334 Double-Acting Piston Seal	3	0.255	2.624	2.997	+0.002/-0	+0.005 / -0	+0/-0.004
PSC-334-WB Double-Acting Piston Seal	3	0.37	2.624	2.997	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-338 Double-Acting Piston Seal	3.5	0.255	3.125	3.498	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342 Double-Acting Piston Seal	4	0.255	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342-WB Double-Acting Piston Seal	4	0.37	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-350 Double-Acting Piston Seal	5	0.255	4.636	4.999	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-433-WB Double-Acting Piston Seal	6	0.5	5.521	5.999	+0.004/-0	+0.006 / -0	+0/-0.004
