Style PSC Polyurethane Double-Acting Piston Seals

Description & Features

Materials	95A polyurethane seal, 70A nitrile energizer.

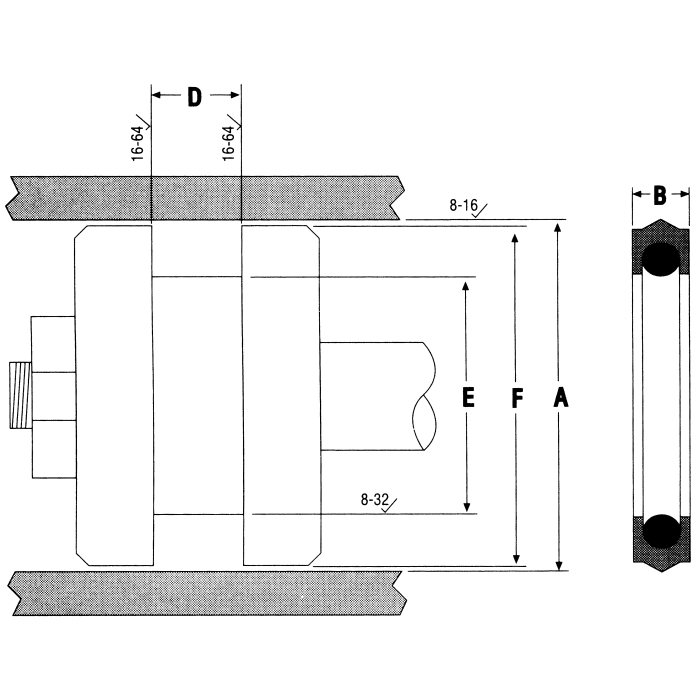

Note	Piston diameter F dimensions are given for pistons without wear rings.
Pressure Range	0 to 5,000 PSI.
Temperature Range	-65°F to 220°F.

Model Number	Bore	Seal Height B	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Groove Width Tolerance (in)	Piston Dia. Tolerance (in)
PSC-218 Double-Acting Piston Seal	1.5	0.15	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-218-WB Double-Acting Piston Seal	1.5	0.265	1.254	1.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326 Double-Acting Piston Seal	2	0.255	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-326-WB Double-Acting Piston Seal	2	0.37	1.625	1.998	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-330 Double-Acting Piston Seal	2.5	0.255	2.125	2.498	+0.002/-0	+0.005 / -0	+0/-0.002
PSC-334 Double-Acting Piston Seal	3	0.255	2.624	2.997	+0.002/-0	+0.005 / -0	+0/-0.004
PSC-334-WB Double-Acting Piston Seal	3	0.37	2.624	2.997	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-338 Double-Acting Piston Seal	3.5	0.255	3.125	3.498	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342 Double-Acting Piston Seal	4	0.255	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-342-WB Double-Acting Piston Seal	4	0.37	3.625	3.998	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-350 Double-Acting Piston Seal	5	0.255	4.636	4.999	+0.004/-0	+0.005 / -0	+0/-0.004
PSC-433-WB Double-Acting Piston Seal	6	0.5	5.521	5.999	+0.004/-0	+0.006 / -0	+0/-0.004
