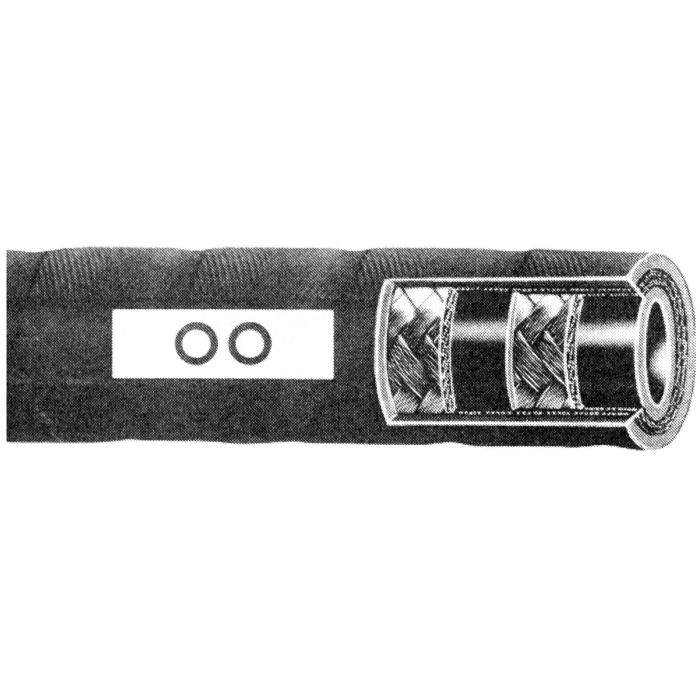

Double Wire Braid SAE 100R2AT Hose

Description & Features

Application	Hydraulic system service with petroleum and water-base fluids, for general industrial service. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	Synthetic rubber tube, double wire braid reinforcement and black synthetic rubber cover.
Note	Pressure ratings for assemblies with Field Crimp or Reusable Fittings are up to 31% lower than assemblies using Global TTC or Global Skive Crimp fittings. See table below.
Temperature Range	-40°F. to +212°F.

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Reel Qty (ft)	Operating Pressure Note	Burst Pressure Note	Price	Action
GH793-12R250 Double Wire Braid 100R2AT Hose	0.75	1.16	3125		9.5	225-300	Rating applies for Global fittings only. For other fittings, rating decreases to 2250 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 9000 PSI
GH793-16R150 Double Wire Braid 100R2AT Hose	1	1.5	2500		12	125-200	Rating applies for Global fittings only. For other fittings, rating decreases to 2000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 8000 PSI
GH793-4R500 Double Wire Braid 100R2AT Hose	0.25	0.6	5750		4	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 5000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 20000 PSI
GH793-6R500 Double Wire Braid 100R2AT Hose	0.38	0.75	5000		5	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 4000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 16000 PSI
GH793-8R500 Double Wire Braid 100R2AT Hose	0.5	0.87	4250		7	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 3500 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 14000 PSI
GH793-10R250 Double Wire Braid 100R2AT Hose	0.62	0.98	3625		8	225-300	Rating applies for Global fittings only. For other fittings, rating decreases to 2750 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 11000 PSI

Product Questions & Answers (1)

Question by: Duane T on Jul 22, 2025, 8:38 PM

What kinda fluids can I run through this hose without worryin' about it eatin' away the inside?

Answer by: Customer Support on Jul 24, 2025, 12:12 PM

This hose is built to handle hydraulic systems using petroleum and water-based fluids.
