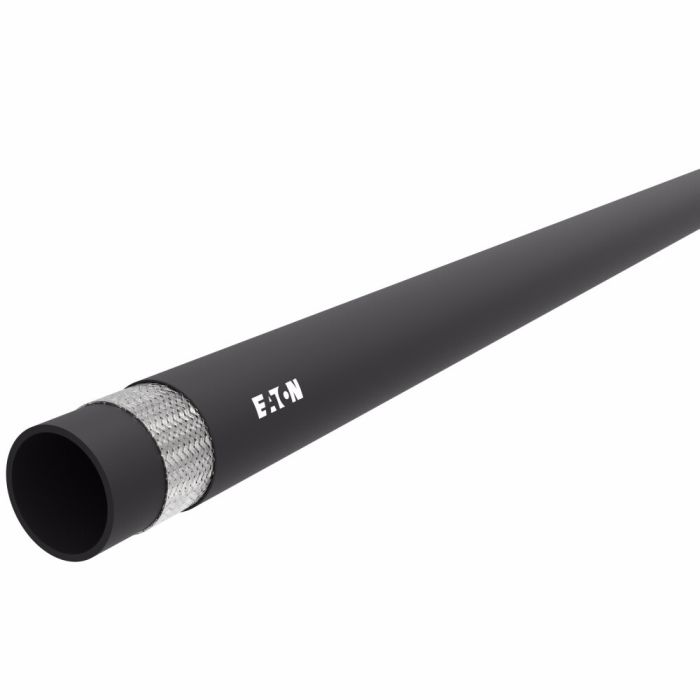

Double Wire Braid SAE 100R2AT Hose, 0.25 Inch ID, Up to 5750.00 PSI

Ask A Question

Description & Features

The Eaton Aeroquip Double Wire Braid SAE 100R2AT Hose is engineered for high-pressure hydraulic systems, featuring a robust 2-ply braid construction. With an inner diameter of 0.25 inches, this hose is ideal for use with petroleum and water-glycol base fluids, lubricating oils, and water applications. Its black PVC/nitrile blend cover offers standard abrasion resistance, ensuring durability in demanding environments. The hose supports a maximum pressure of up to 5750 PSI, making it suitable for various industrial applications.

Designed for reliability and performance, this conductive hose maintains optimal functionality with Eaton's Global fittings, while the burst pressure rating adjusts to 20,000 PSI with alternative fittings. The Eaton Aeroquip brand is synonymous with quality, providing assurance in hydraulic systems requiring precise fluid conveyance. With a catalog number of C1CX74, this hose is an essential component for maintaining efficient hydraulic use.

SKU: GH793-4R500

Supplier Part Number (MPN): GH793-4R500

Alternate Part Numbers: C1CX74, GH793-04-100, GH793-04-50, MI-00352071, MINO-00015F86351

Specifications

Abrasion Resistance
29
Application
Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.
Burst Pressure Note
Rating applies for Global fittings only. For other fittings, rating decreases to 20000 PSI
Color
Black
Conductivity
30
Construction
2-ply braid
Cover Material
PVC/nitrile blend
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.25
Hose O.D.
0.60
Lay Line Style
Transfer Tape
Maximum Operating Pressure
5750
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-40
Operating Pressure Note
Rating applies for Global fittings only. For other fittings, rating decreases to 5000 PSI
Reel Qty (ft)
450-550
Reinforcement Material
Wire
Supplier Part Number
GH793-4R500
Tube Material
Nitrile
Alternate Part Numbers
Alternate Part Number C1CX74, Alternate Part Number GH793-04-100, Alternate Part Number GH793-04-50, Alternate Part Number MI-00352071, Alternate Part Number MINO-00015F86351
Product Weight
0.35 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Reel Qty (ft) Operating Pressure Note Burst Pressure Note Price Action
Double Wire Braid SAE 100R2AT Hose, 0.75 Inch ID, Up to 3125.00 PSI

GH793-12R250 Double Wire Braid 100R2AT Hose

0.75

1.16

3125

9.5

225-300

Rating applies for Global fittings only. For other fittings, rating decreases to 2250 PSI

Rating applies for Global fittings only. For other fittings, rating decreases to 9000 PSI

Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

GH793-16R150 Double Wire Braid 100R2AT Hose

1

1.5

2500

12

125-200

Rating applies for Global fittings only. For other fittings, rating decreases to 2000 PSI

Rating applies for Global fittings only. For other fittings, rating decreases to 8000 PSI

Double Wire Braid SAE 100R2AT Hose, 0.38 Inch ID, Up to 5000.00 PSI

GH793-6R500 Double Wire Braid 100R2AT Hose

0.38

0.75

5000

5

450-550

Rating applies for Global fittings only. For other fittings, rating decreases to 4000 PSI

Rating applies for Global fittings only. For other fittings, rating decreases to 16000 PSI

Double Wire Braid SAE 100R2AT Hose, 0.50 Inch ID, Up to 4250.00 PSI

GH793-8R500 Double Wire Braid 100R2AT Hose

0.5

0.87

4250

7

450-550

Rating applies for Global fittings only. For other fittings, rating decreases to 3500 PSI

Rating applies for Global fittings only. For other fittings, rating decreases to 14000 PSI

Double Wire Braid SAE 100R2AT Hose, 0.62 Inch ID, Up to 3625.00 PSI

GH793-10R250 Double Wire Braid 100R2AT Hose

0.62

0.98

3625

8

225-300

Rating applies for Global fittings only. For other fittings, rating decreases to 2750 PSI

Rating applies for Global fittings only. For other fittings, rating decreases to 11000 PSI

Product Questions & Answers (3)

Question by: Scott W on Aug 15, 2025, 11:49 AM
trying to replace a -4 hose on my machine, is this one actually 1/4 inch inside diameter?
Answer by: Customer Support on Aug 17, 2025, 6:23 AM
It matches a -4 dash size and the hose I.D. is 0.25 inch. Outside diameter is listed at 0.6 inch, which can matter for clamps and routing.
Question by: Travis W on Mar 12, 2026, 8:21 AM
hose is rated at 5750 PSI but I seen something about it dropping to 5000 with certain fittings -- which one actually applies to my setup?
Answer by: Customer Support on Mar 13, 2026, 9:38 PM
The 5750 PSI rating is specific to Global fittings. Pair it with anything else and the working pressure drops to 5000 PSI. Same goes for burst pressure -- the published figure assumes Global fittings, and that number steps down to 20000 PSI with non-Global fittings. So what actually applies to your setup depends entirely on which fittings you're running. Worth confirming before you pressurize the system.
Question by: Johnny K on Mar 5, 2026, 6:33 AM
trying to replace a busted line on a log splitter, is this the 1/4 inch hose and what dash size is it?
Answer by: Customer Support on Mar 7, 2026, 6:22 AM
For sizing, this one is a -4 dash hose with a 0.25 inch inside diameter, so it matches the common 1/4 inch hydraulic hose size.
