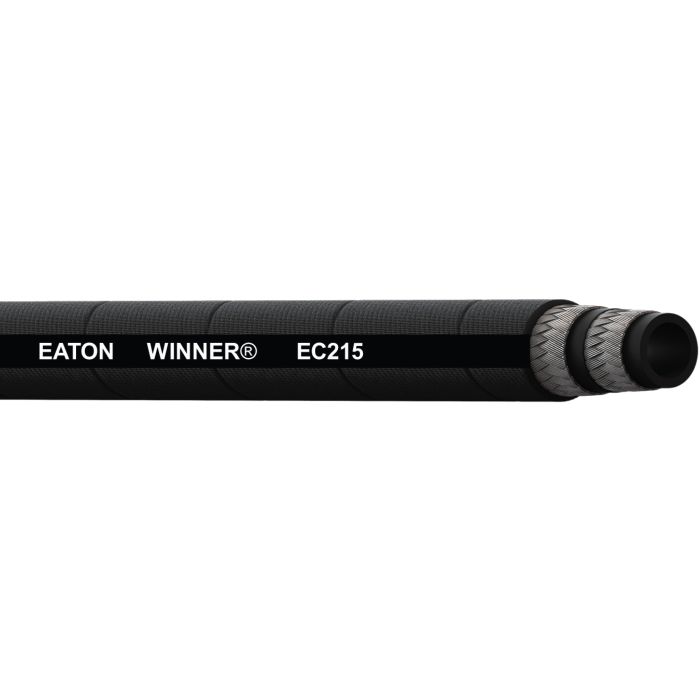

EN857 2SC Double Wire Braid Hose
Description & Features
| Application | Hydraulic system service with petroleum and water-based fluids; General industrial service. EN857 2SC and SAE 100R16 Performance (-04 thru -16). Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
| Construction | Synthetic rubber tube, Double wire braid reinforcement, Black synthetic rubber cover MSHA approved, Embossed layline. |
| Crimp Fittings | Global TTC (Steel) |
| Temperature Range | -40°F to +212°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|
EC215-04LRL Double Wire Braid Hose |
0.25 |
0.52 |
5800 |
|
1.97 |
500 |
|
|
EC215-06LRL Double Wire Braid Hose |
0.38 |
0.67 |
4800 |
|
2.56 |
500 |
|
|
EC215-08LRL Double Wire Braid Hose |
0.5 |
0.81 |
4000 |
|
3.54 |
500 |
|
|
EC215-12LRL Double Wire Braid Hose |
0.75 |
1.09 |
3125 |
|
4.72 |
250 |
|
|
EC215-16LRL Double Wire Braid Hose |
1 |
1.4 |
2400 |
|
6.3 |
250 |
|
|
EC215-20L Double Wire Braid Hose |
1.25 |
1.72 |
1800 |
|
9.84 |
|
|
|
EC215-10LRL Double Wire Braid Hose |
0.62 |
0.94 |
3650 |
|
3.94 |
500 |
|
Product Questions & Answers (1)
Question by: Neal H on Oct 2, 2025, 2:09 PM
Can this hose handle hot hydraulic fluid without breaking down?
Answer by: Customer Support on Oct 4, 2025, 6:38 AM
This hose is rated to handle hydraulic fluids with temperatures ranging from -40°F to +212°F.
