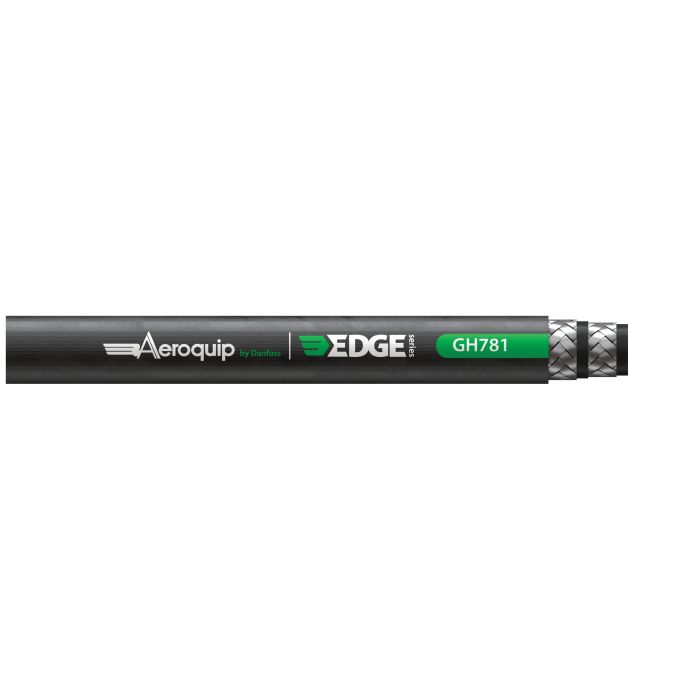

Double Wire Braid SAE 100R16 Type S Hose, 1.25 Inch ID, Up to 2500.00 PSI

Ask A Question

Description & Features

The Double Wire Braid SAE 100R16 Type S Hose 1.25 Inch ID Up to 2500.00 PSI is built for hydraulic system service with petroleum and water-base fluids. This superior hose from Danfoss Power Solutions features a synthetic rubber tube double wire braid reinforcement and a black synthetic rubber cover for durability.

Constructed with high abrasion resistance and premium burst pressure of 10000 PSI it ensures reliability in demanding industrial applications. The hose is conductive providing safe usage and boasts an impressive impulse cycle life of 600000 B7.

Engineered to withstand a temperature range of -40F to +212F this model meets or exceeds DIN requirements at 1/2 SAE bend radius. The minimum bend radius of 8.25 inches allows flexibility in tight configurations. Maximum operating pressure is rated at 2500 PSI ensuring efficiency in various industrial settings.

The cover and tube material are both made from synthetic rubber ensuring long-lasting performance. The hose ID is 1.25 inches and the OD is 1.65 inches making it suitable for numerous applications. The lay line style uses ink transfer for clear identification.

MPN: GH781-20

Supplier Part Number: GH781-20

Specifications

Abrasion Resistance
28
Burst Pressure
10000
Conductivity
30
Cover Material
Synthetic Rubber
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
1.25
Hose O.D.
1.65
Impulse Cycle Life
600000 B7
Lay Line Style
Ink Transfer
Maximum Operating Pressure
2500
Minimum Bend Radius
8.25
Minimum Bend Radius
8.25
Minimum Working Temperature
-50
Reel Qty (ft)
Rolls Only
Reinforcement Material
Wire
Supplier Part Number
GH781-20
Tube Material
Synthetic Rubber
Alternate Part Numbers
Alternate Part Number C1CX61, Alternate Part Number GH781-20-100, Alternate Part Number GH781-20-50, Alternate Part Number MI-00290536, Alternate Part Number MINO-00015F38163
Product Weight
1.68 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Reel Qty (ft) Price Action
Double Wire Braid SAE 100R16 Type S Hose, 0.63 Inch ID, Up to 4000.00 PSI

GH781-10R250 Double Wire SAE 100R16 Hose

0.63

0.93

4000

16000

4

225-300

Double Wire Braid SAE 100R16 Type S Hose, 0.25 Inch ID, Up to 6500.00 PSI

GH781-4R500 Double Wire SAE 100R16 Hose

0.25

0.53

6500

26000

2

450-550

Double Wire Braid SAE 100R16 Type S Hose, 0.38 Inch ID, Up to 5300.00 PSI

GH781-6R500 Double Wire SAE 100R16 Hose

0.38

0.69

5300

21200

2.5

450-550

Double Wire Braid SAE 100R16 Type S Hose, 0.50 Inch ID, Up to 4500.00 PSI

GH781-8R500 Double Wire SAE 100R16 Hose

0.5

0.81

4500

18000

3.5

450-550

Double Wire Braid SAE 100R16 Type S Hose, 1.00 Inch ID, Up to 3000.00 PSI

GH781-16R150 Double Wire SAE 100R16 Hose

1

1.42

3000

12000

6

125-200

Double Wire Braid SAE 100R16 Type S Hose, 0.75 Inch ID, Up to 3500.00 PSI

GH781-12R250 Double Wire SAE 100R16 Hose

0.75

1.1

3500

14000

4.75

225-300

Double Wire Braid SAE 100R16 Type S Hose, 1.25 Inch ID, Up to 2500.00 PSI

GH781-20 Double Wire SAE 100R16 Hose

1.25

1.65

2500

10000

8.25

Rolls Only

Double Wire Braid SAE 100R16 Type S Hose, 1.50 Inch ID, Up to 2000.00 PSI

GH781-24 Double Wire SAE 100R16 Hose

1.5

2.03

2000

8000

10

Rolls Only

Double Wire Braid SAE 100R16 Type S Hose, 2.00 Inch ID, Up to 1600.00 PSI

GH781-32 Double Wire SAE 100R16 Hose

2

2.53

1600

6400

12.5

Rolls Only

Product Questions & Answers (4)

Question by: Tammy O on Oct 20, 2025, 9:54 AM
got a 1-1/4 line on a hydraulic setup, is this hose the right size and what’s the pressure it’ll handle
Answer by: Customer Support on Oct 22, 2025, 6:16 AM
For sizing, the inside diameter on this hose is 1.25 inch and the outside diameter is 1.65 inch. On pressure, the maximum operating pressure is 2500 PSI, with a listed burst pressure of 10000 PSI.
Question by: Warren W on Oct 27, 2025, 8:31 PM
What's the lowest temperature this hose can handle without cracking? Gotta run some cold stuff through it sometimes.
Answer by: Customer Support on Oct 29, 2025, 7:42 PM
The safe minimum working temperature for this hose is -40°F.
Question by: Danny R on Nov 15, 2025, 8:23 AM
running 1-1/4 inch hydraulic lines on some equipment and need to know if this hose can hold up at 2500 psi continuous, that gonna be enough or is it borderline?
Answer by: Customer Support on Nov 16, 2025, 12:54 PM
At 2500 PSI maximum operating pressure with a 10,000 PSI burst rating, you've got a solid safety margin for continuous hydraulic service at that pressure. The double wire braid reinforcement is built for exactly this kind of steady working load, so you're not pushing the limits running it at full rated pressure.
Question by: Gary W on Jun 30, 2025, 10:19 AM
What kind of fluid can I run through this hose?
Answer by: Customer Support on Jul 2, 2025, 6:41 AM
This hose is designed to handle both petroleum-based and water-based hydraulic fluids, so it's pretty versatile.
