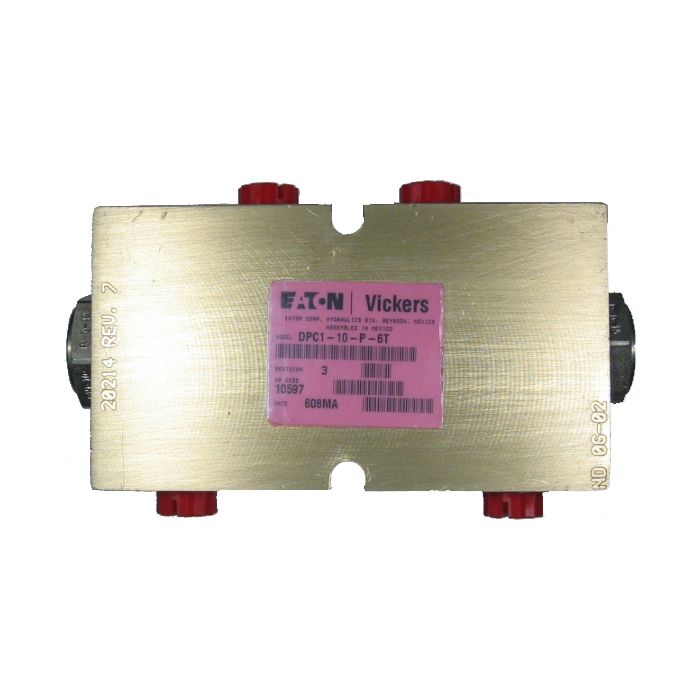

DPC1-10 Series Inline Double Pilot Operated Check Valves, Up To 3000 PSI & 12 GPM

Description & Features

Cracking Pressure	15 PSI
Flow Rating	12 GPM.
Maximum Operating Pressure	3000 PSI.
Pilot Ratios	4:1
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Model Number	Part Number	Seal Material	Price	Action
DPC1-10-P-6T DPC1-10 Series PO Check Valve	566314	Buna-N

Product Questions & Answers (1)

Question by: Johnny S on Nov 20, 2025, 11:10 AM

What pressure does this valve need to unlock the cylinder?

Answer by: Customer Support on Nov 22, 2025, 6:38 AM

Unlocking pressure depends on whether you're using a single or double acting cylinder. For single-acting, it's about 25% of the locked pressure. Double-acting unlocking pressure is a little more involved and depends on the pressures and cylinder areas on both ends.
