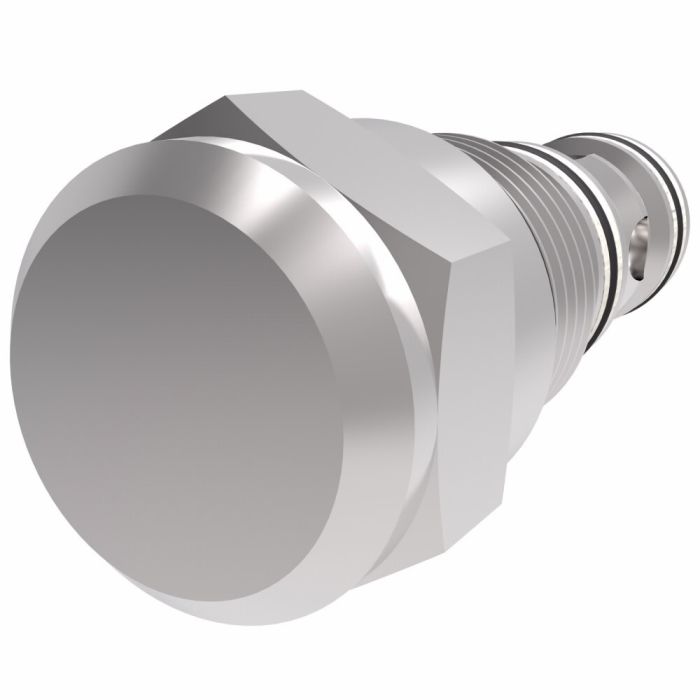

main product photo

DPS2-20 Series Differential Pressure Sense Cartridge Valve, Poppet, bi-directional, pilot to close, 2:1 ratio, N/C, 80.00 Differential Pressure Setting

Ask A Question

Description & Features

This Eaton Vickers DPS2-20 Series Differential Pressure Sense Cartridge Valve is a poppet style, bi-directional, normally closed logic element valve with a 2:1 pilot to close ratio.

Featuring a fixed stroke adjustment style, this screw-in cartridge valve is designed for mobile and industrial applications such as harvesters and refuse haulers. It is suitable for use as a main section of a pilot controlled valve assembly with directional, flow, or pressure control cartridges. It has a 80 GPM maximum flow rate and a 5000 PSI maximum operating pressure (poppet type). It is made with Buna-N seals, and requires a cleanliness code of 18/16/13.

SKU: 889303

Supplier Part Number (MPN): 889303

Alternate Part Numbers: C1NA11, DPS220TF080

Specifications

Adjustment Style
None (Fixed stroke)
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Function
Poppet, bi-directional, pilot to close, 2:1 ratio, N/C
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Differential Pressure
Port Type
Cartrige Only
Pressure Setting
80
Recommended Filtration Level
18/16/13 Microns
Seal Type
Buna-N
Special Features
None
Style
Poppet
Supplier Part Number
889303
Alternate Part Numbers
Alternate Part Number C1NA11, Alternate Part Number DPS220TF080, Alternate Part Number MINO-00569H78598
Product Weight
1.50 lbs

Related Documents

Similar Products

Model Number Part Number Function Adjustment Style Pressure Setting Price Action
DPS2-20 Series Differential Pressure Sense Cartridge Valve, Poppet, bi-directional, pilot to close, 2:1 ratio, N/C, 40.00 Differential Pressure Setting

DPS2-20-T-F-0-40 DPS2-20 Series Cartridge Valve

02-153254

Poppet, bi-directional, pilot to close, 2:1 ratio, N/C

None (Fixed stroke)

40

Product Questions & Answers (2)

Question by: Eddie J on Apr 8, 2025, 7:06 AM
What kind of applications does this valve typically work in?
Answer by: Customer Support on Apr 10, 2025, 6:12 AM
Often found in harvesters and refuse haulers, this valve is suitable for both mobile and industrial hydraulic applications.
Question by: Tammy H on Jul 12, 2025, 9:44 AM
what's the max pressure this poppet style cartridge can handle before it starts causing problems?
Answer by: Customer Support on Jul 14, 2025, 6:00 AM
Poppet type versions of the DPS2-20 series are rated up to 5000 PSI operating pressure. That puts it well above the spool type, which tops out at 4200 PSI. If your system runs at higher pressures, the poppet style is the one to go with between the two options.
