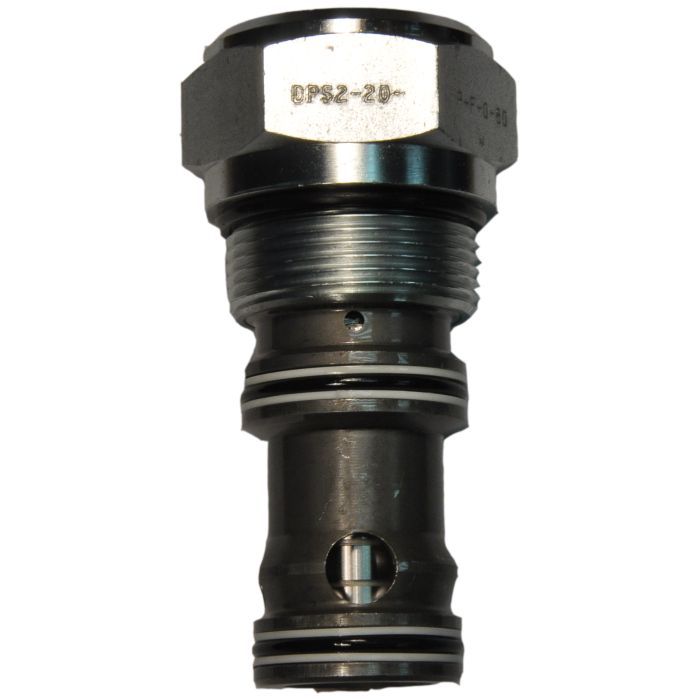

DPS2-20 Series Differential Pressure Sense Cartridge Valves, Up To 80 GPM & 5000 PSI

Description & Features

Application	This valve is used as a main section of a pilot controlled valve assembly. This valve has multiple uses when used with either directional control, flow control or pressure control cartridges.
Cartridge	Model DPS2-20-*, sold separately
Features	The DPS2-20 is a differential pressure sensing valve, available as either a spool or poppet type and with either, internal or external pilot.
Housing	Cavity size C-20-3S, sold seperately, see
Maximum Flow Rate	80 GPM
Maximum Operating Pressure	4200 PSI (spool type), 5000 PSI poppet type)
Recommended Filtration	Cleanliness code 18/16/13
Temperature Range	-40° F to 248° F

Model Number	Part Number	Function	Adjustment Style	Pressure Setting	Price	Action
DPS2-20-T-F-0-40 DPS2-20 Series Cartridge Valve	02-153254	Poppet, bi-directional, pilot to close, 2:1 ratio, N/C	None (Fixed stroke)	40
DPS2-20-T-F-0-80 DPS2-20 Series Cartridge Valve	889303	Poppet, bi-directional, pilot to close, 2:1 ratio, N/C	None (Fixed stroke)	80

Question by: Rhonda P on Sep 5, 2025, 6:48 PM

Reckon this would be the right valve if I'm usin' a C-20-3S cavity size housing?

Answer by: Customer Support on Sep 7, 2025, 8:17 AM

this valve fits a C-20-3S cavity size housing. Keep in mind that the housing itself is sold separately.
