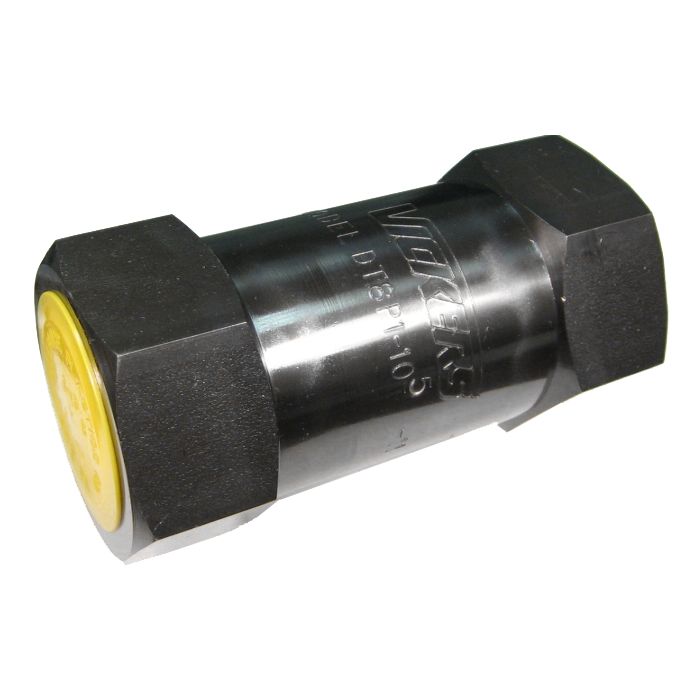

DS8P1 & DT8P1 Series Inline Check Valves, Up To 3000 PSI & 50 GPM

Description & Features

Application	Used in hydraulic applications to allow free flow of fluid in one direction only.
Construction	Steel body. No elastomer seals.
Maximum Operating Pressure	3000 PSI (Designed for low shock service. Do NOT use this valve to check a high velocity reverse flow resulting in shock conditions).

Model Number	Part Number	Size	Thread 1	Rated Flow	Cracking Pressure (psi)	A	B
DT8P1-02-5-10 DS8P1 & DT8P1 Series Check Valve	114088	1/4	1/4 NPT	3.2	5	2.25	0.88
DT8P1-06-5-11 DS8P1 & DT8P1 Series Check Valve	125670	3/4	3/4 NPT	20	5	3.88	1.5
DT8P1-03-5-10 DS8P1 & DT8P1 Series Check Valve	117378	3/8	3/8 NPT	8	5	3	1
DT8P1-10-5-11 DS8P1 & DT8P1 Series Check Valve	125667	1-1/4	1-1/4 NPT	50	5	5.25	2.5
