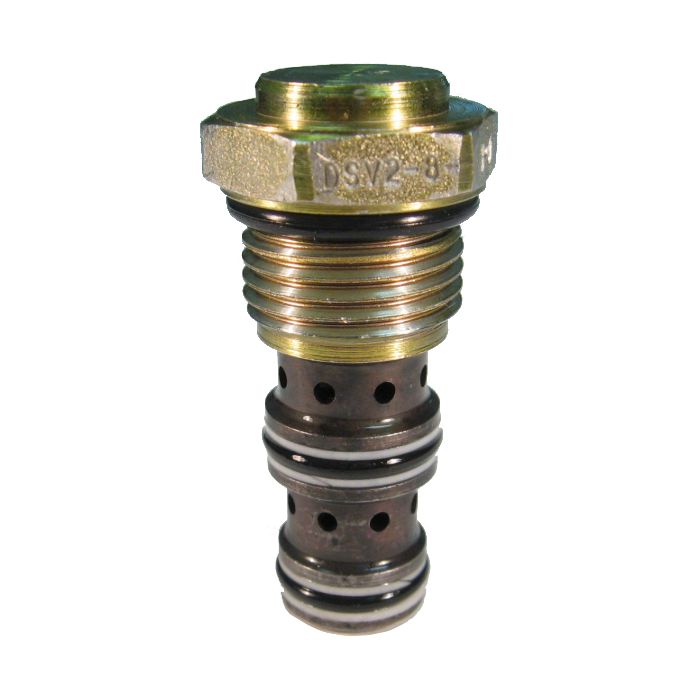

main product photo

Skip to the beginning of the images gallery

DSV2-8 Series Shuttle Cartridge Valves, Up To 3500 PSI & 6 GPM

Description & Features

Cartridge	Model DSV2-8-*, sold separately.
Group Description	The DSV2-8-B is a direct acting, ball type, shuttle valve.
Flow Rating	6 GPM.
Housing	Cavity size C-8-3, sold separately, see
Internal Leakage	5 drops/min. maximum @ 3500 PSI (Between ports 2 and 1, and 2 and 3. Typical with fluid at 105 SSU and 120°F).
Maximum Operating Pressure	3500 PSI typical application pressure, 3500 PSI cartridge fatigue pressure (infinite life). CAUTION: Pressures over 3000 PSI require steel housing.
Operation	The shuttle valve senses the higher of two pressures at port 3 or port 1 and directs it to port 2.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Model Number	Housing	Seal Material	Price	Action
02-171239 DSV2-8 Series Cartridge Valve	DSV2-8-B-0	None

Product Questions & Answers (1)

Question by: Shane T on Mar 30, 2026, 3:37 PM

What size housing do I need to make this work?

Answer by: Customer Support on Apr 1, 2026, 6:18 AM

Cavity size C-8-3 is what you're looking for, but it's sold separately.
