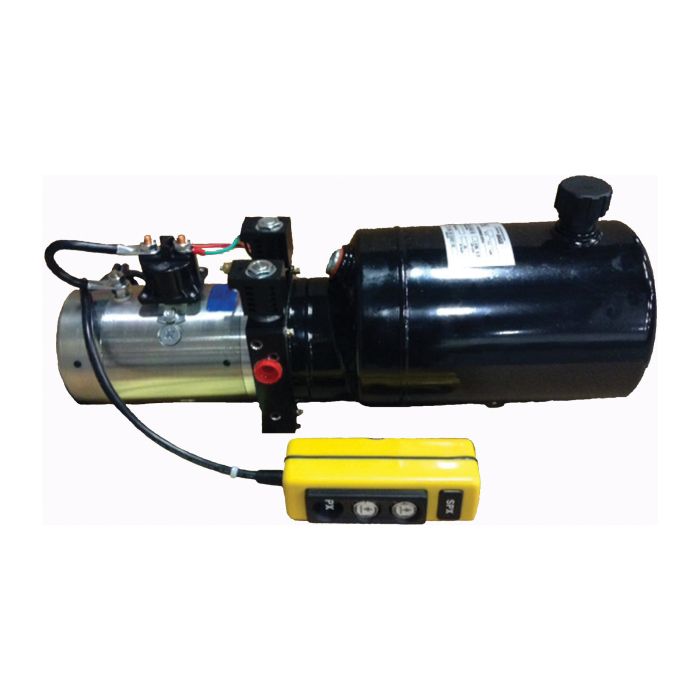

DT41DT Series Solenoid Operated Power Up/Down Power Unit, 12V DC 1 Terminal Std Duty Motor Motor, 2.00 GPM At 500 PSI, 1.10 GPM At 2000 PSI

Description & Features

The DT41DT Series Solenoid Operated Power Up/Down Power Unit by SPX Flow US LLC is designed for industrial applications requiring reliable and efficient hydraulic power. With a 12V DC 1 Terminal Standard Duty Motor this power unit delivers 2.00 GPM at 500 PSI and 1.10 GPM at 2000 PSI ensuring optimal performance under various pressure conditions.

Featuring a Motor Start Switch with a 12VDC Intermittent Duty Start Solenoid the unit is engineered to withstand rigorous operational demands. Its oil capacity is 1.5 gallons housed in a robust steel reservoir.

The relief setting is calibrated at 2500 PSI providing consistent and safe pressure management. The unit's compact yet powerful design makes it suitable for diverse industrial needs.

MPN: C1MM66

Supplier Part Number: DC-41DTC-20-15S-25

Specifications

Current At 500 PSI: 125A, At 2000 PSI, 270A	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	Motor 12V DC 1 Terminal Std Duty Motor	Motor Start Switch 12VDC Int Duty Start Solenoid	Oil Capacity 1.5 Gallon Steel	Rated Flow at 2000 PSI 1.10	Rated Flow at 500 PSI 2	Relief Setting 2500	Supplier Part Number DC-41DTC-20-15S-25	Alternate Part Numbers Alternate Part Number C1MM66, Alternate Part Number DC-41DTC-20-15S-25, Alternate Part Number DC41DTC-20-15S-25	Product Weight 40.00 lbs

Similar Products

Model Number	Motor	Motor Start Switch	Rated Flow at 500 PSI	Rated Flow at 2000 PSI	Current	Relief Setting	Oil Capacity	Price	Action
DC41DTC2015S25 DT41DT Series Solenoid Power HPU	12V DC 1 Terminal Std Duty Motor	12VDC Int Duty Start Solenoid	2	1.1	At 500 PSI: 125A, At 2000 PSI, 270A	2500	1.5 Gallon Steel

Product Questions & Answers (3)

Question by: Warren W on Oct 26, 2025, 8:18 PM

What's the flow rate on this unit drop to once you get up around 2000 PSI? Trying to figure out if it'll keep up with the cylinder speed we need at higher pressure.

Answer by: Customer Support on Oct 28, 2025, 6:21 PM

At 2000 PSI you're looking at 1.10 GPM out of this unit. At the lower end, around 500 PSI, it moves 2.00 GPM. So if your application spends most of its time at higher pressure, plan your cycle times around that 1.10 figure. The relief is set at 2500 PSI, so there's some headroom above 2000, but flow will continue to taper as pressure climbs toward that ceiling.

Question by: Harvey B on Mar 3, 2026, 10:39 AM

got a 12 volt setup already, but i need to know what kind of flow this unit really puts out at working pressure. what’s it do at 500 psi versus 2000?

Answer by: Customer Support on Mar 5, 2026, 6:13 AM

At 500 PSI it’s rated for 2.00 GPM, and at 2000 PSI it’s rated for 1.10 GPM, so you can expect the flow to drop as pressure goes up.

Question by: Larry M on Dec 5, 2025, 8:30 PM

What kind of applications is this power unit suited for?

Answer by: Customer Support on Dec 7, 2025, 9:24 AM

This SPX Flow power unit is designed for industrial applications where you need a reliable source of hydraulic power.
