DV Series Double-Acting Pneumatic Cylinder, Universal Mount, 1.13 Inch Bore, 0.38 Inch Rod, 5.00 Inch Stroke, 1/8 NPT Ports

Rated for up to 250 PSI and a temperature range of -20°F to 200°F, the DV Series Double-Acting Pneumatic Cylinder, Universal Mount, 1.13 Inch Bore, 0.38 Inch Rod, 5.00 Inch Stroke, 1/8 NPT Ports is a compact, industrial-grade air cylinder from American Cylinder Co. suited for a wide range of light-to-medium duty pneumatic applications.

The cylinder body is constructed from thick-walled, hard-coated aluminum with double rolled-in construction. The 303 stainless steel piston rod is ground, polished, and features wrench flats as standard, with the rod threaded, sealed, and machine staked to the piston. Buna-N U-cup seals are used on both the piston and rod, and an oil-impregnated sintered bronze rod guide bushing is included on all models. End caps are aluminum alloy, and a rear pivot bushing is standard.

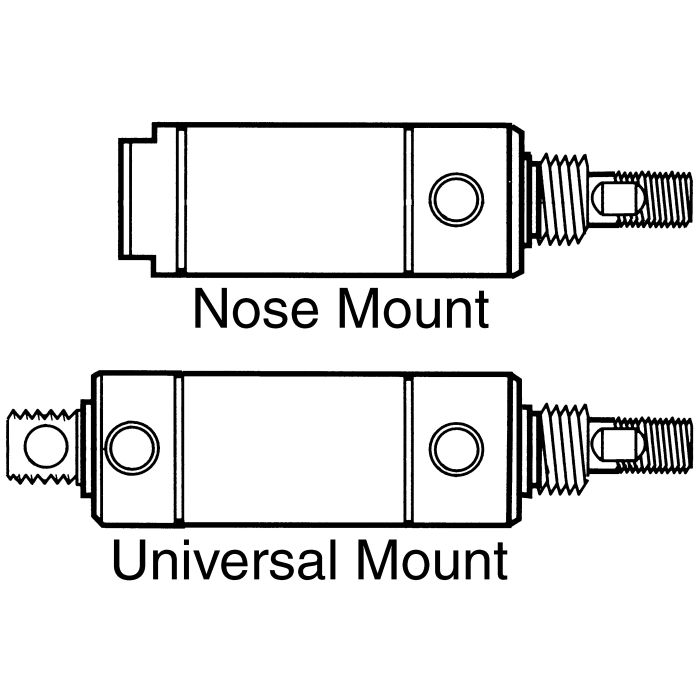

The universal mount design offers flexible installation, and available accessories include foot brackets, mounting nuts, a rod clevis with pin, and a pivot bracket with pin. Optional bumpers, Viton® seals, and 90°-rotated ports are available within the DV Series.

SKU: 1125DV-5.00

Supplier Part Number (MPN): 1125DV-5.00

Alternate Part Numbers: C1HC92
