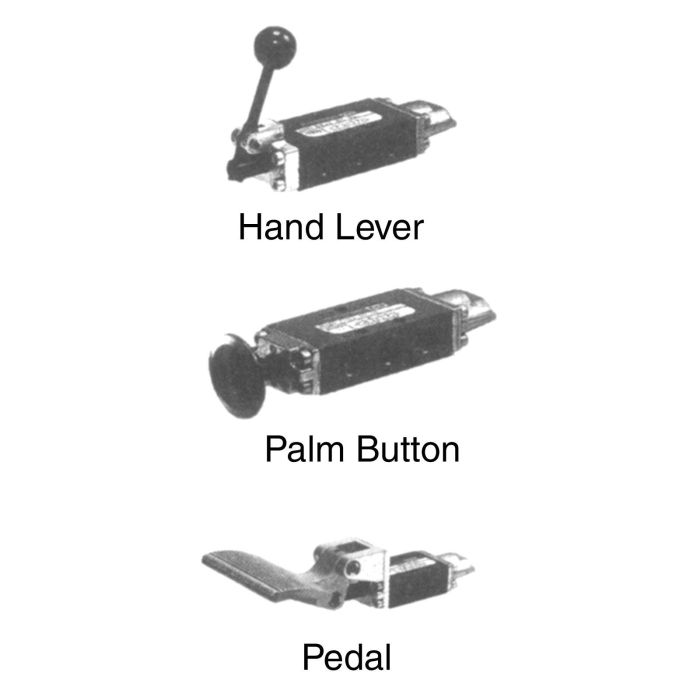

main product photo

E Series Manually Operated Pneumatic Valve, 4-way 2-position, Manual Return, Hand Lever, 1/4 NPT (Side) Ports, 26 Flow Rating

Ask A Question

Description & Features

The Ingersoll-Rand Industrial U.S. Inc. E Series Manually Operated Pneumatic Valve offers a reliable solution for moderate flow applications requiring manual valve operation. This 4-way 2-position valve features a manual return with a hand lever actuator. Designed with 1/4 NPT side ports the valve supports a flow rating of 26 SCFM based on 100 PSIG input and 85 PSIG output.

The valves low-profile design is complemented by an extruded aluminum body and Buna-N spool seals. Operating efficiently within a pressure range of 20-150 PSI and a temperature range of -10F to 180F it guarantees durability. Standard air line lubrication is recommended to ensure optimal performance and extended life expectancy.

Additional actuators like palm button pedal treadle and manual bleed are compatible for versatile control options.

Supplier Part Number: E212LM

Specifications

Actuator Type
Hand Lever
CV Factor
0.70
Brand
Ingersoll-Rand Industrial US
Brand
Ingersoll-Rand
Pack Size
1.00
UOM
EA
Flow Rating (SCFM)
26
Ports
1/4 NPT (Side)
Ports
1/4 NPT (Side)
Spool Action
Manual Return
Supplier Part Number
E212LM
Valve Type
4-way 2-position
Product Weight
0.90 lbs
Alternate Part Numbers
Alternate Part Number C1CN80

Similar Products

Model Number Actuator Type Valve Type Spool Action Ports Flow Rating (SCFM) CV Factor Price Action
E Series Manually Operated Pneumatic Valve, 4-way 2-position, Spring Return, Pedal, 1/4 NPT (Side) Ports, 26 Flow Rating

E212FS E Series Manual Pneumatic Valve

Pedal

4-way 2-position

Spring Return

1/4 NPT (Side)

26

0.7000

E Series Manually Operated Pneumatic Valve, 4-way 3-position, Spring Centered, Hand Lever, 1/4 NPT (Side) Ports, 26 Flow Rating

E312LS E Series Manual Pneumatic Valve

Hand Lever

4-way 3-position

Spring Centered

1/4 NPT (Side)

26

0.7000

Product Questions & Answers (2)

Question by: Howard M on Sep 20, 2025, 4:53 PM
What kind of flow rate can I expect from this valve?
Answer by: Customer Support on Sep 21, 2025, 5:45 PM
You can expect a flow rating of 26 SCFM. That's based on a 100 PSIG input and 85 PSIG output.
Question by: Troy A on Jun 5, 2025, 11:36 AM
got a cylinder setup that needs a hand lever valve. is this one a 4-way 2-position with a manual return or does it stay where you leave it
Answer by: Customer Support on Jun 7, 2025, 7:36 AM
Manual return is the action on this valve, so it is a 4-way, 2-position valve that returns when you let go of the hand lever.
