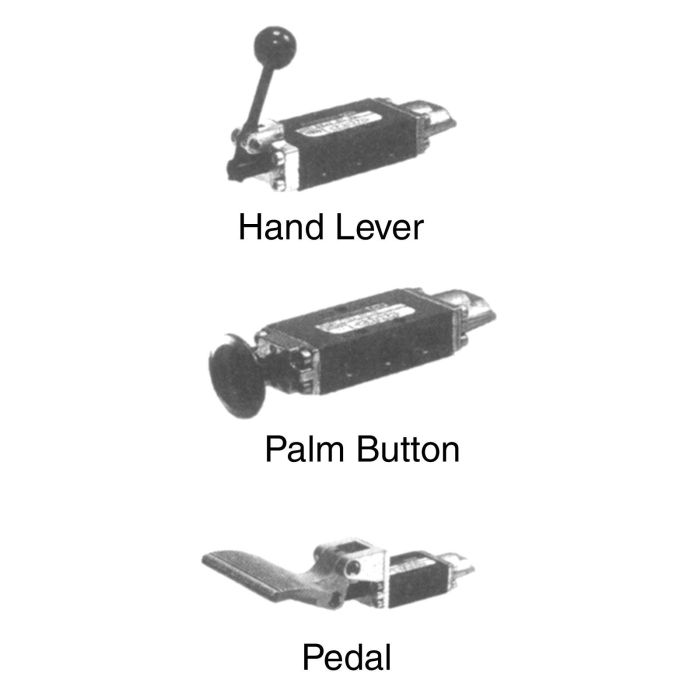

E Series Manually Operated Pneumatic Valve, 4-way 3-position, Spring Centered, Hand Lever, 1/4 NPT (Side) Ports, 26 Flow Rating

Description & Features

This manually operated pneumatic valve is part of the E Series from Ingersoll Rand Aro. This 4-way, 3-position valve features a spring-centered spool action and a hand lever actuator for moderate flow applications. The E Series Manually Operated Pneumatic Valve offers a flow rating up to 26 SCFM, based on 100 PSIG input and 85 PSIG output.

This valve is constructed with an extruded aluminum body and Buna-N spool seals. It is designed for an operating pressure range of 20 to 150 PSI and a temperature range of -10°F to 180°F. This directional valve has 1/4 NPT (side) ports. For maximum performance and life expectancy, standard air line lubrication should be used.

SKU: E312LS

Supplier Part Number (MPN): E312LS

Alternate Part Numbers: C1CN84

Specifications

Actuator Type Hand Lever	CV Factor 0.70	Brand Ingersoll-Rand Industrial US	Brand Ingersoll-Rand	Pack Size 1.00	UOM EA	Flow Rating (SCFM) 26	Ports 1/4 NPT (Side)	Ports 1/4 NPT (Side)	Spool Action Spring Centered	Supplier Part Number E312LS	Valve Type 4-way 3-position	Product Weight 1.19 lbs	Alternate Part Numbers Alternate Part Number C1CN84

Similar Products

Model Number	Actuator Type	Valve Type	Spool Action	Ports	Flow Rating (SCFM)	CV Factor	Price	Action
E212FS E Series Manual Pneumatic Valve	Pedal	4-way 2-position	Spring Return	1/4 NPT (Side)	26	0.7000
E212LM E Series Manual Pneumatic Valve	Hand Lever	4-way 2-position	Manual Return	1/4 NPT (Side)	26	0.7000

Product Questions & Answers (2)

Question by: Tommy M on Mar 9, 2026, 10:55 AM

got an air setup that runs around 120 psi, is this valve ok with that or am i pushin it

Answer by: Customer Support on Mar 11, 2026, 6:05 AM

Within its stated limits, it will handle that. The operating pressure range is 20 to 150 PSI, so 120 PSI falls inside what it is built to run.

Question by: Lyle W on Jul 7, 2025, 5:56 PM

Reckon this valve can handle gettin' a bit warm? I'm usin' it in a spot that can reach maybe 150 degrees F.

Answer by: Customer Support on Jul 9, 2025, 1:02 PM

This valve is rated for operating temperatures between -10°F and 180°F, so 150 degrees shouldn't be a problem.
