E Series Manually Operated Pneumatic Valves, Up To 26 SCFM
Description & Features

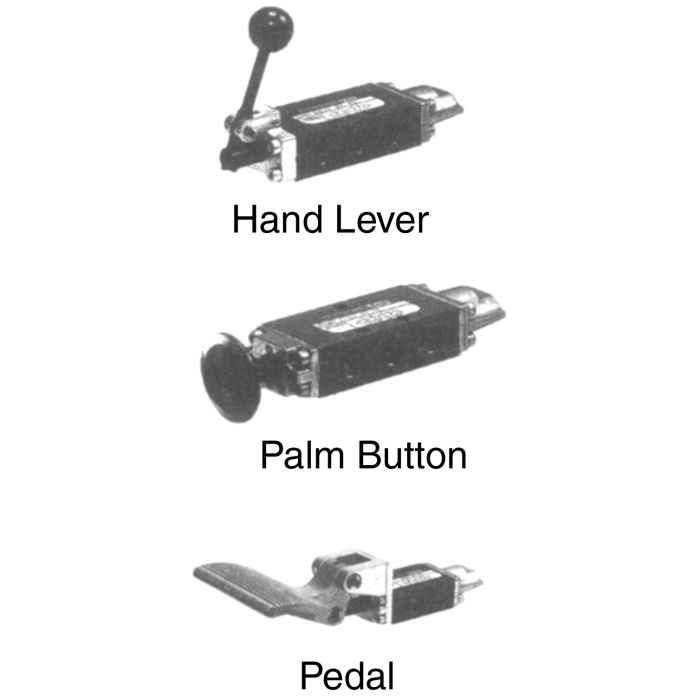

| Actuators | Hand Lever, Palm Button, Pedal, Treadle, Manual Bleed. |
| Application | Moderate flow applications requiring manual valve operation. |
| Features | Low profile. |
| Flow Rating | Based on 100 PSIG input and 85 PSIG output. |
| Lubrication | Valves use O-ring seals. For maximum performance and life expectancy, standard air line lubrication should be used. |
| Materials | Extruded aluminum body. Buna-N spool seals. |
| Operating Pressure Range | 20-150 PSI. |
| Temperature Range | -10°F to 180°F. |
Products
| Model Number | Actuator Type | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Price | Action |
|---|---|---|---|---|---|---|---|---|
E212FS E Series Manual Pneumatic Valve |
Pedal |
4-way 2-position |
Spring Return |
1/4 NPT (Side) |
26 |
0.7000 |
|
|
E212LM E Series Manual Pneumatic Valve |
Hand Lever |
4-way 2-position |
Manual Return |
1/4 NPT (Side) |
26 |
0.7000 |
|
|
E312LS E Series Manual Pneumatic Valve |
Hand Lever |
4-way 3-position |
Spring Centered |
1/4 NPT (Side) |
26 |
0.7000 |
|
