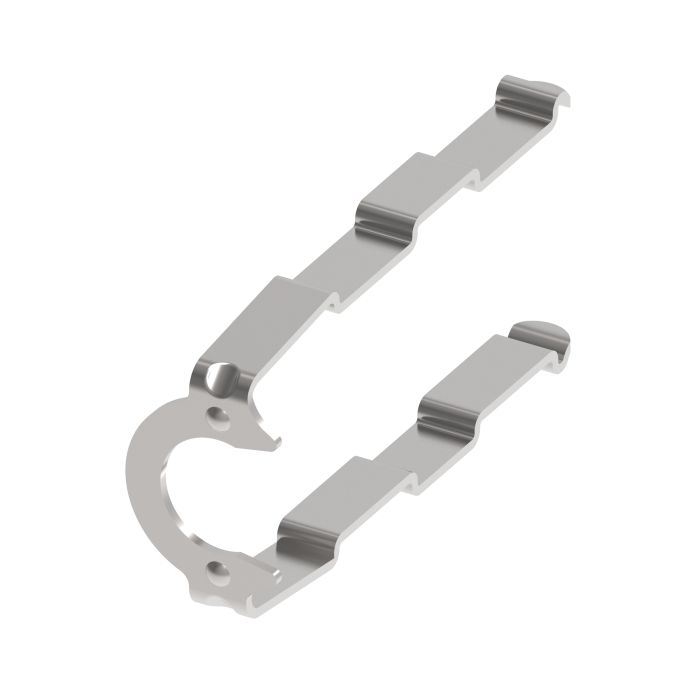

main product photo

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

Ask A Question

Description & Features

Danfoss Power Solutions offers an efficient and user-friendly assembly with the E-Z Clip System for A/C and refrigeration systems. This system ensures no leaking crimps and eliminates guesswork, making it ideal for confined areas. The installation process involves cutting the hose, installing clips, lubricating and inserting the nipple, and snapping on the cage. Finally, the clips are slid over the cage arms and closed using the FT1357 Clip Closing Pliers, ensuring a secure fit.

Constructed from durable materials, this system requires no power supply and is as straightforward to use as a pair of pliers. Essential materials include a guillotine blade or equivalent cutting tool, compatible refrigerant oil, appropriately sized clips, and a nipple assembly. Note that E-Z Clip components should not be reused to maintain reliability and safety.

MPN: 1F40105-06C

Supplier Part Number: 1F40105-06C

Specifications

Brand
Danfoss
Compatible Hose ID
3/8 in
Connection Size 1
3/8 in
Fitting Type
Cage
For Use With
GH134 Series Hoses
Hose Dash Size
06
Inside Diameter
0.63 in
Mandrel Required
Without Mandrel
Manufacturing Cage Code
SERRES-CASTET FRANCE - FA9C4
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40105 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
6 in
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-08C E-Z Clip Series Cage

08

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-10C E-Z Clip Series Cage

10

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-12C E-Z Clip Series Cage

12

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

Product Questions & Answers (4)

Question by: Wes O on Jul 31, 2025, 12:43 PM
hey I tore one of the black rings on the nipple can I just swap it out for a standard rubber one from the shop
Answer by: Customer Support on Aug 2, 2025, 6:35 AM
Those two black o-rings are made of a very specific rubber compound and size so they absolutely cannot be removed or replaced. You will need a completely new nipple assembly instead of trying to swap out the seals.
Question by: Curt C on Feb 19, 2026, 9:31 PM
got a -06 GH134 A/C hose, are these the right cages for the E-Z Clip setup?
Answer by: Customer Support on Feb 21, 2026, 11:47 AM
For a -06 hose size E-Z Clip assembly, these cages match the -06 sizing called out for the system components used with GH134 Multi-Refrigerant hose, along with the properly sized clips and the nipple assembly.
Question by: Neil H on Nov 6, 2025, 10:39 AM
What size hose does this cage work with? Just want to make sure I'm getting the right fit.
Answer by: Customer Support on Nov 8, 2025, 9:21 AM
This cage is part of the Danfoss/Eaton E-Z Clip system, designed for A/C and refrigeration applications. For the correct fit, you'll need to match the cage with appropriately sized clips and a nipple assembly that's compatible with your hose.
Question by: Dustin H on Mar 10, 2026, 1:18 PM
i’ve got a tight spot to work in, do these E-Z Clip cages make the install any easier than a regular crimp setup?
Answer by: Customer Support on Mar 12, 2026, 6:19 AM
For cramped installs, the E-Z Clip system is set up to be assembled with hand tools instead of a powered crimper. The basic flow is cut the hose, put the clips on, lube and insert the nipple, snap the cage on, then slide the clips over the cage arms and close them with the FT1357 clip closing pliers.
