main product photo

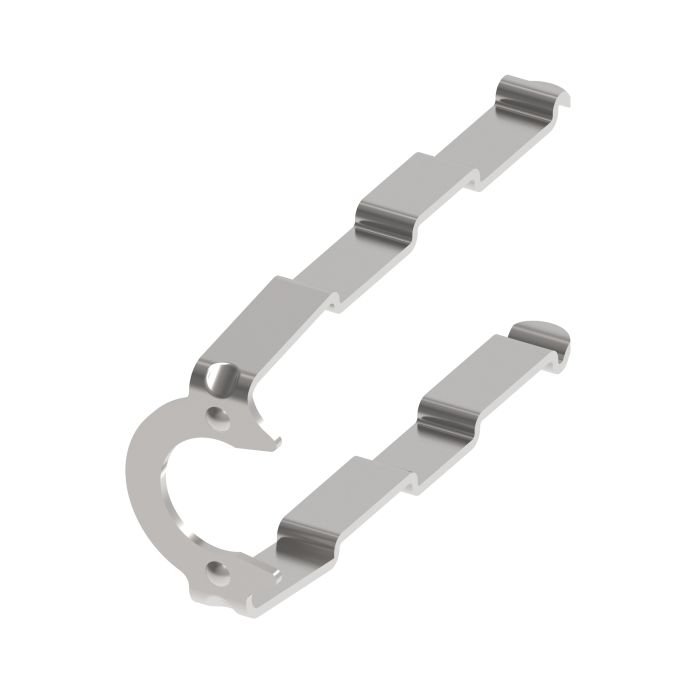

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

Ask A Question

Description & Features

Featuring precise and reliable assembly for air conditioning and refrigeration, this system does not require power supplies, making it ideal for confined spaces. It provides leak-free crimps without guesswork, ensuring efficiency in assembly. Follow these steps: cut the hose squarely, install clips, lubricate the nipple using compatible compressor oil, insert the nipple into the hose, snap the cage into the groove, slide clips over cage arms, and close clips using FT1357 Clip Closing Pliers. Required materials include clip closing pliers, cutting tools, refrigerant oil, GH134 Multi-Refrigerant hose, sized clips, and nipple assembly. Maintain the specific rubber compound and size of the two black o-rings on the nipple assembly; they should not be removed or replaced. CAUTION: Adherence to assembly instructions and EPA guidelines is crucial to avoid unreliable and unsafe hose assemblies, which may lead to personal injury or violations of EPA regulations.

MPN: C1EX50

Supplier Part Number: 1F40105-08C

Specifications

Brand
Danfoss
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Fitting Type
Cage
For Use With
GH134 Series Hoses
Hose Dash Size
08
Inside Diameter
0.739 in
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40105 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
M08
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-06C E-Z Clip Series Cage

06

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-10C E-Z Clip Series Cage

10

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

1F40105-12C E-Z Clip Series Cage

12

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Cages

Product Questions & Answers (3)

Question by: Frank F on Nov 5, 2025, 8:24 AM
do i need a heavy duty crimping machine to put these clips together.
Answer by: Customer Support on Nov 6, 2025, 6:00 PM
Use the FT1357 Clip Closing Pliers to secure the connections instead of a traditional press. You will not need a power supply or a standard crimper since the system is built to be as simple as using a regular pair of pliers in tight areas.
Question by: Brett P on Mar 11, 2026, 9:44 AM
got a hose cut already, what’s the right order to put these E-Z Clip cages on so i dont mess it up?
Answer by: Customer Support on Mar 13, 2026, 7:34 AM
Start by cutting the hose square, then slip two correct-size clips onto the hose end. Lube the nipple with a generous amount of the system’s compressor oil so it goes in without tearing things up, then push the nipple in until the hose is tight against the nipple shoulder with no gap. Snap the cage into the nipple groove and make sure it can rotate in that groove, slide the clips over the cage arms into the channels, and close the clips using FT1357 clip closing pliers while keeping the pliers square on the connection points.
Question by: Dwight O on Nov 15, 2025, 9:37 AM
How do I know which size clips I need for my hose?
Answer by: Customer Support on Nov 17, 2025, 6:02 AM
You'll need to match the clip size to the GH134 Multi-Refrigerant hose you're using. The product description mentions needing "sized clips," so ensuring you have the right match is key for a leak-free crimp.
