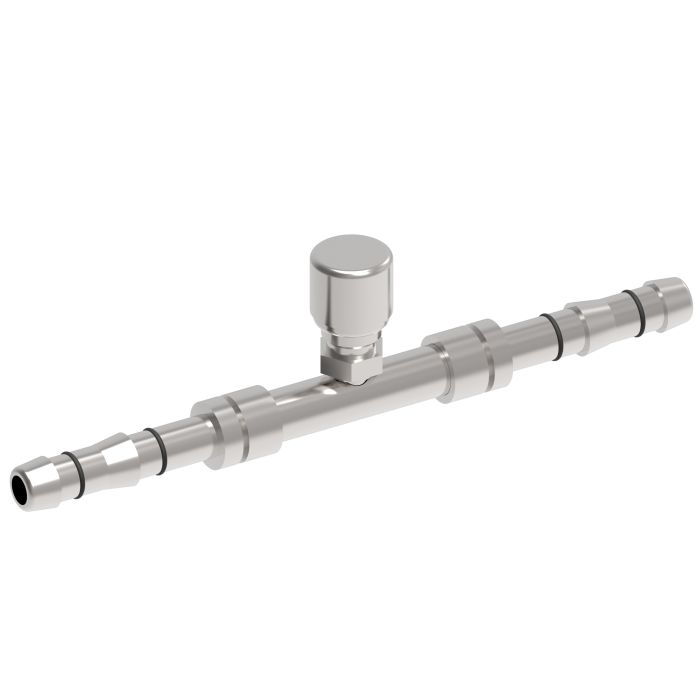

main product photo

E-Z Clip Series Fitting, -10 Hose Splicer With Charge Port (R12)

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) E-Z Clip Series Fitting -10 Hose Splicer With Charge Port (R12) provides secure and efficient hose splicing for specialized applications. It features male barb ends ensuring a tight and reliable connection.

Constructed with precision this fitting eliminates the need for guesswork making it easy to use even in confined spaces. The integral charge port facilitates seamless operation within HVAC and refrigeration systems. The fitting supports -10 hose size enhancing its versatility across various industrial setups.

Designed to prevent leaking crimps this component requires no power supply for installation and is as straightforward to use as a pair of pliers. The splicer guarantees reliability by adhering to stringent guidelines for refrigerant systems.

Its practical design includes a secure cage mechanism that snaps into place allowing 360-degree rotation for optimal alignment. The use of appropriate materials and refrigerant oil ensures compatibility and longevity.

Supplier Part Number: FJ3171-1010S

Specifications

Brand
Danfoss
a Dimensions
5.54 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.44 in
d Dimensions
2.44 in
Dimensions
5.54 in L x 0.63 in W x 0.83 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
5/8 in
End Size 2
5/8 in
f Dimensions
1.26 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/16 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3171 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -08 Hose Splicer With Charge Port (R12)

FJ3171-0808S E-Z Clip Series Charge Port Splicer

08

2.44 in

1.26 in

E-Z Clip Series Fitting, -12 Hose Splicer With Charge Port (R12)

FJ3171-1212S E-Z Clip Series Charge Port Splicer

12

2.44 in

1.26 in

Product Questions & Answers (1)

Question by: Dwight J on Dec 14, 2025, 12:58 PM
Will this here splicer work with any old hose, or does it need somethin' special?
Answer by: Customer Support on Dec 15, 2025, 7:41 PM
This splicer is designed for use with GH134 Multi-Refrigerant hose to ensure proper sealing and system compatibility.
