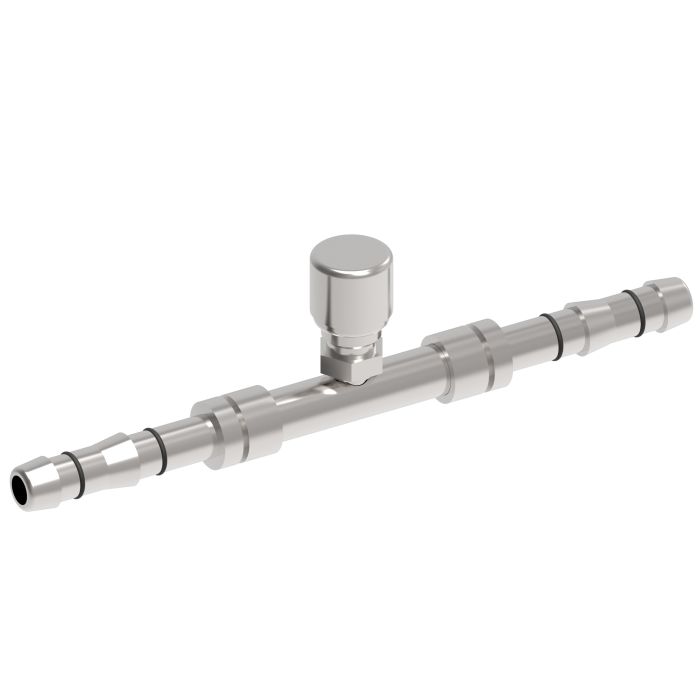

main product photo

E-Z Clip Series Fitting, -12 Hose Splicer With Charge Port (R12)

Ask A Question

Description & Features

This high-quality splicer designed by Danfoss Power Solutions under the Aeroquip brand ensures reliable performance in demanding environments. Specifically engineered for refrigeration and A/C systems this fitting facilitates seamless hose splicing with a charge port for R12 applications.

The E-Z Clip Series Fitting features a barb end type with an end size of 0.75 inches for both connections making it versatile and efficient. The hose size compatibility is -12 and no mandrel is required during installation. Its robust design eliminates the need for guesswork and prevents leaking crimps.

Installation involves straightforward steps: cutting the hose slipping on clips lubricating the nipple and inserting it into the hose. The snap-on cage and closing the clips using the FT1357 Clip Closing Pliers ensure a secure fit. Notably this product does not require a power supply enhancing usability in confined spaces.

CAUTION: Follow the assembly instructions meticulously and use only Aeroquip hoses with these fittings to ensure reliability and safety. The components are not reusable and should be used as per the guidelines.

**Manufacturer Part Number: FJ3171-1212S**

**Supplier Part Number: FJ3171-1212S**

Specifications

Brand
Danfoss
a Dimensions
5.6 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Crimp
Cut-Off Factor
2.44 in
d Dimensions
2.44 in
Dimensions
5.6 in L
End Gender 1
Male
End Gender 2
Male
End Size 1
3/4 in
End Size 2
3/4 in
f Dimensions
1.26 in
Finish
Dura-Kote™
Fitting Type
Splicer
For Use With
GH134 Series Hoses
Hex Size
7/16 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ3171 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -08 Hose Splicer With Charge Port (R12)

FJ3171-0808S E-Z Clip Series Charge Port Splicer

08

2.44 in

1.26 in

E-Z Clip Series Fitting, -10 Hose Splicer With Charge Port (R12)

FJ3171-1010S E-Z Clip Series Charge Port Splicer

10

2.44 in

1.26 in

Product Questions & Answers (2)

Question by: Sheila W on Dec 20, 2025, 3:46 PM
What size hose does this splicer work with? I'm using a -12 size right now.
Answer by: Customer Support on Dec 22, 2025, 12:51 PM
This splicer is designed to work with a -12 size hose, according to the product details.
Question by: Freddie G on Dec 24, 2025, 1:12 PM
does this fitting work without any kind of crimping machine or special power tools? trying to put together an A/C hose repair out in the field and ain't got access to all that equipment
Answer by: Customer Support on Dec 26, 2025, 6:19 AM
No power supply or crimping machine needed for this one. The E-Z Clip system works by sliding clips onto the hose, snapping a cage onto the nipple groove, and closing the clips with the FT1357 Clip Closing Pliers. That's the only special tool required. As long as you've got those pliers, a clean square cut on the hose, and some compressor oil to lubricate the nipple before insertion, you can complete the assembly without any shop equipment.
