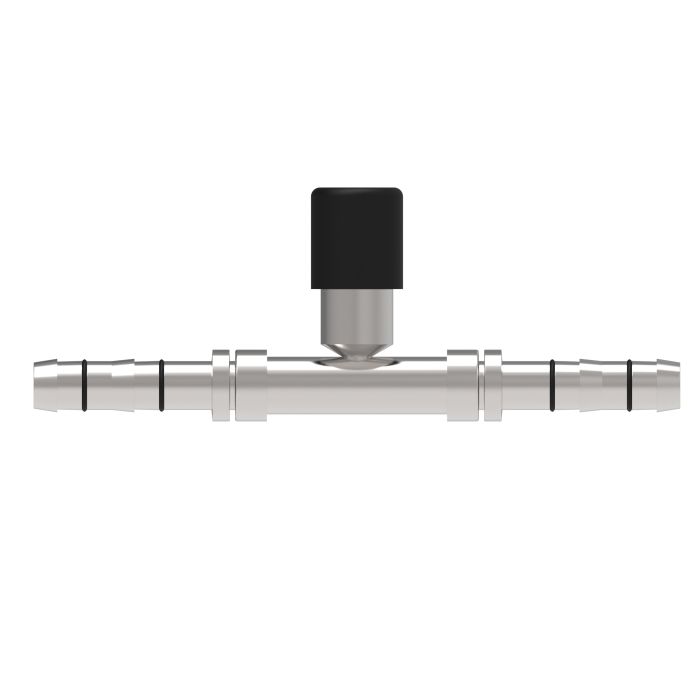

main product photo

E-Z Clip Series Fitting, -10 Hose Splicer With Low Side Charge Port (R134a)

Ask A Question

Description & Features

The E-Z Clip Series Fitting -10 Hose Splicer with Low Side Charge Port (R134a) is designed by Danfoss Power Solutions (II LLC Aeroquip) to efficiently manage refrigeration or A/C system needs. Featuring barb ends compatible with a -10 hose this fitting ensures secure and leak-proof connections.

It includes a male-to-male design providing reliable connectivity for 0.625-inch hoses. Installation is straightforward with oil lubrication of the nipple and precise positioning of clips and nipple cage. The splicer is suitable for confined spaces and requires only basic tools eliminating the need for power supply or complex machinery.

Manufacturing meets rigorous standards to ensure no leaking crimps fitted with essential O-rings that must remain intact. It is recommended to follow specific assembly instructions to avoid unintended refrigerant release and comply with EPA regulations.

MPN: FJ5986-1010S Supplier Part Number: FJ5986-1010S

Specifications

Brand
Danfoss
a Dimensions
5.54 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.44 in
d Dimensions
2.44 in
Dimensions
5.54 in L x 0.63 in W x 1.44 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
5/8 in
End Size 2
5/8 in
f Dimensions
1.22 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.66 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5986 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -12 Hose Splicer With Low Side Charge Port (R134a)

FJ5986-1212S E-Z Clip Series Charge Port Splicer

12

2.44 in

1.22 in

Product Questions & Answers (3)

Question by: Jean L on Aug 30, 2025, 8:26 AM
How do I get this thing installed right? I don't want to mess up my A/C system.
Answer by: Customer Support on Aug 31, 2025, 1:26 PM
For proper installation, you'll want to lubricate the nipple with refrigeration or A/C system compressor oil before inserting it into the hose. Make sure there's no gap between the hose end and the shoulder on the nipple, and avoid kinking the hose.
Question by: Peggy W on Apr 17, 2025, 8:54 AM
what all do I need to have on hand before putting one of these splicers together? Don't want to get halfway through and realize I'm missing something.
Answer by: Customer Support on Apr 18, 2025, 4:51 PM
Before you start, round up a pair of FT1357 Clip Closing Pliers and either a FT1356 guillotine blade or a comparable square-cutting tool for the hose. You'll also need two appropriately sized clips and a cage for the fitting, plus refrigerant oil that's compatible with your specific A/C or refrigeration system. The nipple assembly comes with two black O-rings already installed, and those need to stay put exactly as they are. Once you've got all that together, the actual assembly goes pretty quick.
Question by: Howard F on Jul 8, 2025, 9:28 AM
got a -10 A/C hose that’s 0.625 inch, will this splicer fit both ends or am i off a size
Answer by: Customer Support on Jul 10, 2025, 6:47 AM
It’s a male-to-male splicer with barb ends made for -10 hose and it lists 0.625 inch on both ends, so it matches a 0.625 inch hose on each side.
