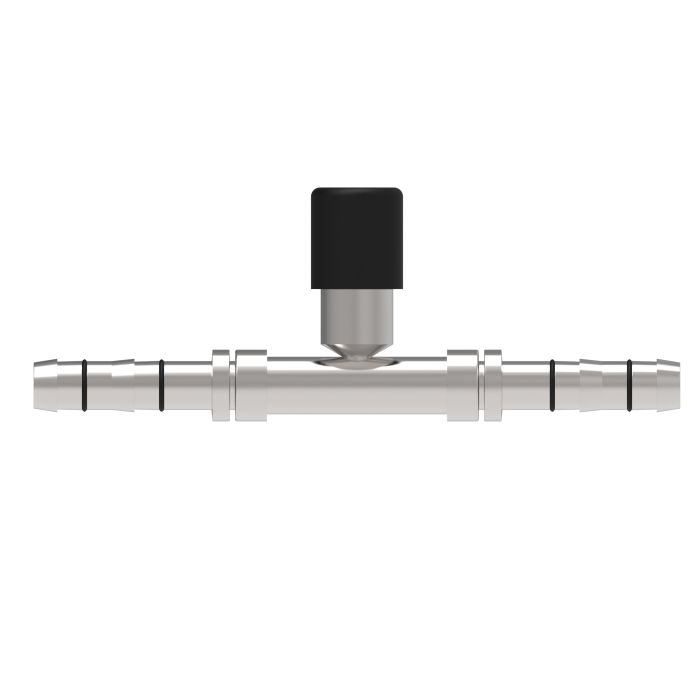

main product photo

E-Z Clip Series Fitting, -12 Hose Splicer With Low Side Charge Port (R134a)

Ask A Question

Description & Features

Crafted by Danfoss Power Solutions (II LLC Aeroquip) this -12 hose splicer with low side charge port is an integral component in A/C and refrigeration systems. Designed for compatibility with R134a refrigerants it features a barb and line/hose/tube end type both at 0.75 inches.

Engineered for reliability this fitting ensures no leaking crimps and requires no power supply for installation. The E-Z Clip system promotes ease of use in confined spaces.

The assembly process involves several steps including proper hose cutting installation of clips lubrication of the nipple and the use of specific tools like the FT1357 Clip Closing Pliers. The fitting is constructed to avoid gaps between the hose and the nipple shoulder preventing refrigerant escape.

Supplier Part Number: FJ5986-1212S

ECCN: EAR99

Specifications

Brand
Danfoss
a Dimensions
5.6 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.44 in
d Dimensions
2.44 in
Dimensions
5.6 in L x 0.43 in W x 0.43 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
3/4 in
End Size 2
3/4 in
f Dimensions
1.22 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
3/4 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ5986 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -10 Hose Splicer With Low Side Charge Port (R134a)

FJ5986-1010S E-Z Clip Series Charge Port Splicer

10

2.44 in

1.22 in

Product Questions & Answers (3)

Question by: Todd R on Aug 30, 2025, 8:25 AM
got a -12 A/C hose that needs spliced, is this the one with the low side charge port for R134a?
Answer by: Customer Support on Sep 1, 2025, 7:10 AM
For R134a A/C and refrigeration setups, this fitting is a -12 hose splicer that includes a low side charge port. Both ends are 0.75 inch, with a barb on one side and a line, hose, tube style end on the other, and it uses two clips per fitting as part of the E-Z Clip system.
Question by: Daryl E on Apr 15, 2025, 9:11 AM
Will this thing work with R134a refrigerant, or do I need a different fitting?
Answer by: Customer Support on Apr 17, 2025, 7:34 AM
This splicer is indeed compatible with R134a refrigerants.
Question by: Neil M on Oct 21, 2025, 3:27 PM
What all do I need on hand before I start putting this splicer together? Don't want to get halfway through and realize I'm missing something.
Answer by: Customer Support on Oct 23, 2025, 12:05 PM
Before you start, round up the FT1357 Clip Closing Pliers and a guillotine blade or equivalent cutting tool. You'll also need two appropriately sized clips and a cage, refrigerant oil that's compatible with your A/C or refrigeration system, and GH134 Multi-Refrigerant hose. The nipple assembly comes with two black o-rings already on it, and those should stay put, don't remove or replace them. Once you've got all that together, the process moves pretty quick.
