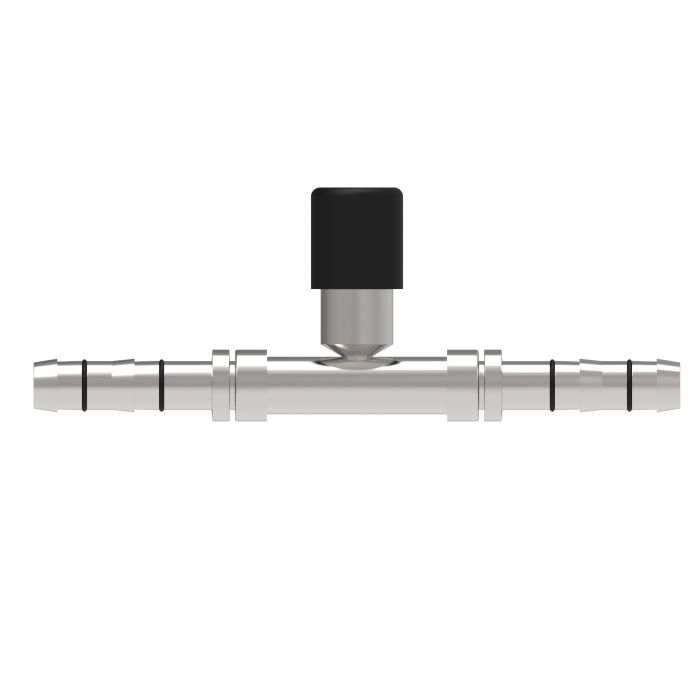

E-Z Clip Series Fitting, -08 Hose Splicer With High Side Charge Port (R134a)

Ask A Question

Description & Features

The DANFOSS Power Solutions (II LLC Aeroquip) E-Z Clip Series Fitting -08 Hose Splicer with High Side Charge Port (R134a) is a reliable choice for specialized applications. Designed for use with refrigeration systems this fitting offers a secure hose connection without the need for bulky equipment.

The fitting features male barb and hose ends both with a 0.5-inch size ensuring a snug and leak-free fit. The inclusion of a high side charge port facilitates easy maintenance and monitoring for efficiency.

Manufactured with precision and quality materials it eliminates the risk of leaking crimps and is easy to use in confined areas. The installation process is straightforward requiring only simple tools like the FT1357 Clip Closing Pliers.

This product meets the specific needs of various industry applications ensuring reliability and durability. Moreover it's designed to be used with GH134 Multi-Refrigerant hose and compatible lubricants adding to its versatility.

MPN: FJ5995-0808S

Supplier Part Number: FJ5995-0808S

Specifications

Brand
Danfoss
a Dimensions
5.61 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.52 in
d Dimensions
2.52 in
Dimensions
5.61 in L x 0.55 in W x 0.55 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
1/2 in
End Size 2
1/2 in
f Dimensions
1.26 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ5995 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -10 Hose Splicer With High Side Charge Port (R134a)

FJ5995-1010S E-Z Clip Series Charge Port Splicer

10

2.52 in

1.26 in

Product Questions & Answers (2)

Question by: Janet G on Jul 7, 2025, 7:02 AM
got an -08 GH134 A/C hose that needs spliced, is this the right piece for it?
Answer by: Customer Support on Jul 8, 2025, 9:58 PM
For splicing an -08 GH134 Multi-Refrigerant hose, this fitting is built for that job. It is an E-Z Clip hose splicer with a high side charge port for R134a systems, and both ends are 0.5 inch with a male barb style connection.
Question by: Tony M on Mar 24, 2026, 6:02 AM
what tool do I need to close the clips on this thing? got the fitting but not sure if I need something special or if regular pliers'll work
Answer by: Customer Support on Mar 25, 2026, 12:53 PM
Regular pliers won't cut it here. You need the FT1357 Clip Closing Pliers specifically. The instructions are pretty clear that those pliers have to be positioned square on the clip connection points and kept square all the way through the closing process. Using the wrong tool risks a bad connection, and with refrigerant involved that's not a risk worth taking.
