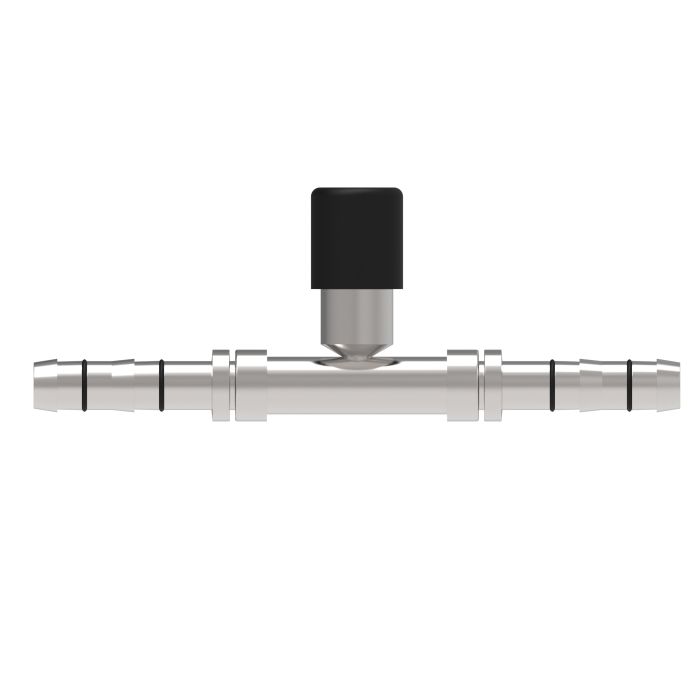

main product photo

E-Z Clip Series Fitting, -10 Hose Splicer With High Side Charge Port (R134a)

Ask A Question

Description & Features

The E-Z Clip Series Fitting -10 Hose Splicer With High Side Charge Port (R134a) is designed for efficient connections in high-pressure environments. Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this fitting ensures secure leak-free operations essential for specialized applications.

This product features male barb ends and is compatible with -10 size hoses. Its robust design eliminates the need for mandrels or thread sealants streamlining installation processes. The included seal part (1F40106-10) enhances reliability and prevents refrigerant leakage.

The fitting utilizes the reliable E-Z Clip system which requires no power supply and minimizes guesswork in installations. It is optimized for confined spaces making it highly versatile for various industrial settings. Each fitting comes with appropriately sized clips and a nipple assembly with specific rubber compound o-rings.

Essential assembly tools include clip closing pliers (FT1357) and a compatible cutting tool like the FT1356 guillotine blade. Following strict installation guidelines is crucial to ensure system integrity and compliance with EPA regulations.

Note: E-Z Clip components are designed for one-time use and should not be reused.

MPN: FJ5995-1010S

Supplier Part Number: FJ5995-1010S

Specifications

Brand
Danfoss
a Dimensions
5.62 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.52 in
d Dimensions
2.52 in
Dimensions
5.62 in L x 0.55 in W x 0.55 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
5/8 in
End Size 2
5/8 in
f Dimensions
1.26 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5995 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions f Dimensions Price Action
E-Z Clip Series Fitting, -08 Hose Splicer With High Side Charge Port (R134a)

FJ5995-0808S E-Z Clip Series Charge Port Splicer

08

2.52 in

1.26 in

Product Questions & Answers (1)

Question by: Danny A on May 2, 2025, 4:34 PM
what tools do I actually need to put this thing together? got the fitting but want to make sure I ain't missing anything before I start cutting hose
Answer by: Customer Support on May 4, 2025, 6:59 AM
You'll need the FT1357 Clip Closing Pliers to close the clips once everything is seated, and a guillotine-style cutting tool like the FT1356 to get a clean square cut on the hose. Beyond that, grab some refrigeration or A/C compressor oil compatible with your system. That oil is not optional. You have to lubricate the nipple before insertion or you risk damaging the hose and making the job a whole lot harder than it needs to be. The fitting itself comes with appropriately sized clips and the nipple assembly, so those are already covered.
