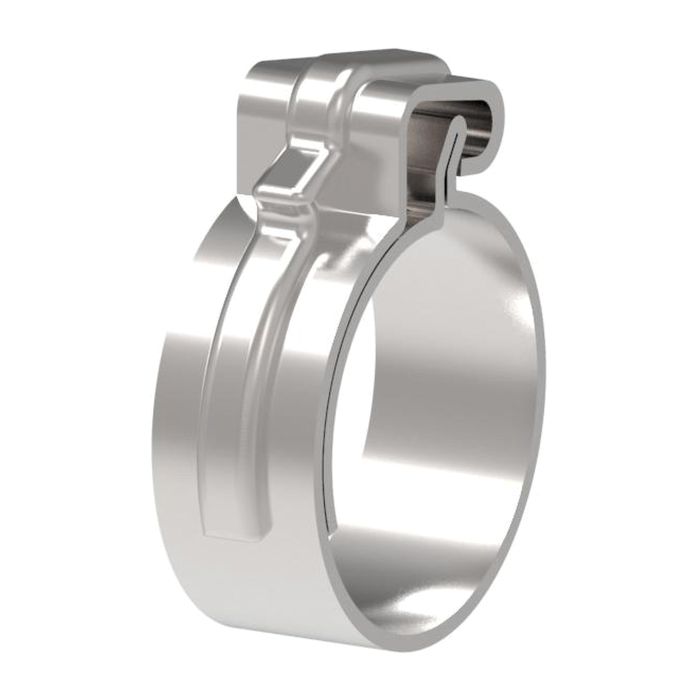

main product photo

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Ask A Question

Description & Features

The E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips are engineered to provide a reliable solution for hose assembly in industrial refrigeration and A/C systems.

This system simplifies the assembly process, eliminating the necessity for complex tools or guesswork, and ensures secure connections without leaking crimps. Designed for use with compatible refrigerant oil, the clips can be easily installed using basic tools such as Clip Closing Pliers and a guillotine blade or equivalent cutting tool.

One of the key features is the ability to operate in confined spaces without requiring an external power source. The nipple assembly includes black o-rings of a specific rubber compound and size that must be maintained for optimal functionality.

Note that the components are designed for single-use only; proper assembly according to instructions is crucial for safety and regulatory compliance.

MPN: C1EX45

Supplier Part Number: 1F40104-06C

Specifications

Brand
Danfoss
a Dimensions
0.71 in
Compatible Hose ID
3/8 in
Connection Size 1
3/8 in
Dimensions
0.71 in ID
Fitting Type
Clip
For Use With
GH134 Series Hoses
Hose Dash Size
06
Inside Diameter
0.708 in
Manufacturing Cage Code
SERRES-CASTET FRANCE - FA9C4
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40104 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
6 in
Thread Sealant
Without Thread Sealant

Similar Products

Model Number a Dimensions Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-08C E-Z Clip Series Clip

0.81 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-10C E-Z Clip Series Clip

0.91 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-12C E-Z Clip Series Clip

1.08 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Product Questions & Answers (2)

Question by: Cody B on Nov 14, 2025, 10:05 AM
are these the clips that work with danfoss refrigeration fittings or do they go with eaton stuff too
Answer by: Customer Support on Nov 15, 2025, 2:52 PM
Both brands use the same E-Z Clip system, so these clips work with refrigeration products from either Danfoss or Eaton. The E-Z Clip design is compatible across both manufacturers' A/C and refrigeration lines that use this specific clip system.
Question by: Neil C on Sep 26, 2025, 10:50 AM
What exactly are these clips used for?
Answer by: Customer Support on Sep 28, 2025, 8:33 AM
They're part of the Danfoss / Eaton E-Z Clip System for A/C refrigeration products.
