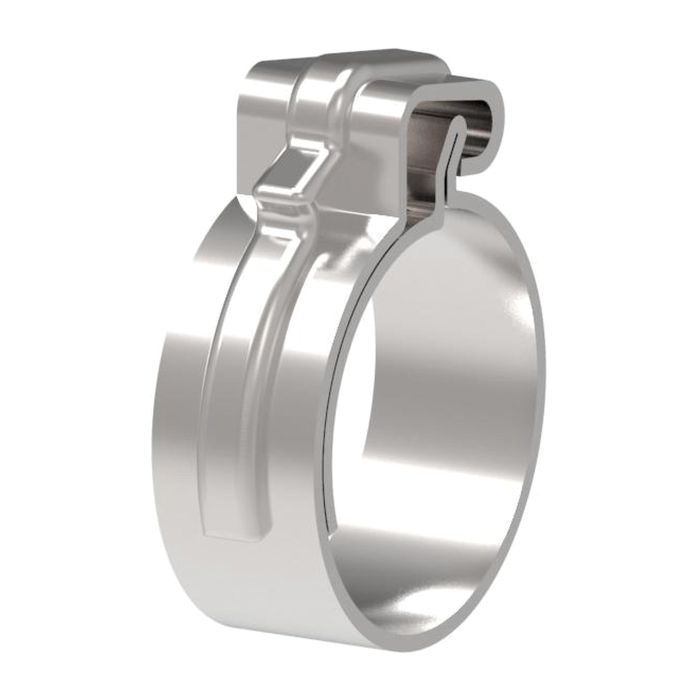

main product photo

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Ask A Question

Description & Features

The E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips by Danfoss Power Solutions offer a reliable and efficient solution for A/C and refrigeration systems. These clips eliminate the need for a power supply and are easy to use even in confined spaces.

Key features include no guesswork, no leaking crimps, and the simplicity of using a pair of pliers. Essential materials required are clip closing pliers, a guillotine blade or equivalent cutting tool, compatible refrigerant oil, GH134 Multi-Refrigerant hose, appropriately sized clips, and a nipple assembly.

For installation, cut the hose to the correct length, slip on two clips, lubricate the nipple with compressor oil, and insert the nipple into the hose without creating a gap. Snap the cage into the nipple groove, slide the clips over the cage arms into their channels, and close the clips using FT1357 Clip Closing Pliers.

Strict adherence to assembly instructions is crucial to prevent unsafe hose assemblies and ensure compliance with EPA regulations.

MPN: C1EX46

Supplier Part Number: 1F40104-08C

Specifications

Brand
Danfoss
a Dimensions
0.81 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Dimensions
0.81 in ID
Fitting Type
Clip
For Use With
GH134 Series Hoses
Hose Dash Size
08
Inside Diameter
0.81 in
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40104 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
M08
Thread Sealant
Without Thread Sealant

Similar Products

Model Number a Dimensions Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-06C E-Z Clip Series Clip

0.71 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-10C E-Z Clip Series Clip

0.91 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-12C E-Z Clip Series Clip

1.08 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Product Questions & Answers (2)

Question by: Rhonda F on Aug 2, 2025, 9:11 AM
How well do these E-Z Clip Series clips hold up under frequent use in an A/C refrigeration setup?
Answer by: Customer Support on Aug 4, 2025, 6:31 AM
E-Z Clip Series clips are built to withstand regular use in A/C refrigeration applications. Their solid construction ensures a reliable hold, helping to maintain system integrity over time.
Question by: Earl D on Aug 29, 2025, 5:22 PM
are these clips compatible with other brands besides danfoss and eaton or just those two
Answer by: Customer Support on Aug 31, 2025, 6:47 AM
Compatible specifically with Danfoss and Eaton E-Z Clip System refrigeration products. Each manufacturer typically engineers their clips with proprietary dimensions and connection points, so cross-brand compatibility isn't standard in these systems.
