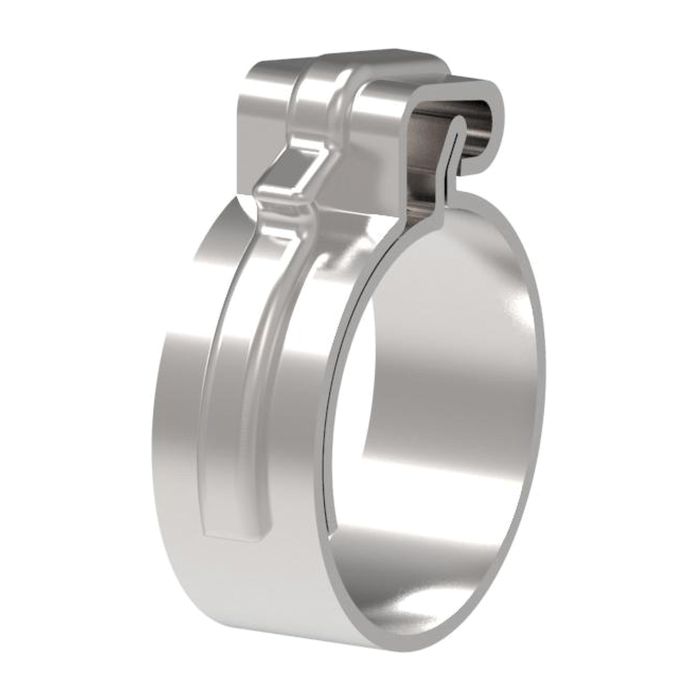

main product photo

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Ask A Question

Description & Features

The E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips provide a reliable solution for secure hose connections in specialized refrigeration applications. Developed by Danfoss Power Solutions, these clips are designed for robust connections without specialized tools.

Key features include eliminating guesswork and preventing leak-prone crimps. These clips, paired with GH134 Multi-Refrigerant hose and compatible refrigerant oil, ensure straightforward installation using basic hand tools. The use of a guillotine blade or equivalent cutting tool helps achieve precise hose cuts, while the nipple assembly with specific rubber compound o-rings ensures a secure fit.

Follow detailed assembly instructions to avoid unsafe hose assemblies. Note that E-Z Clip components should not be reused to maintain system integrity and safety.

MPN: C1EX47

Supplier Part Number: 1F40104-10C

Specifications

Brand
Danfoss
a Dimensions
0.91 in
Compatible Hose ID
5/8 in
Connection Size 1
5/8 in
Dimensions
0.9 in ID
Fitting Type
Clip
For Use With
GH134 Series Hoses
Hose Dash Size
10
Inside Diameter
0.9 in
Manufacturing Cage Code
SERRES-CASTET FRANCE - FA9C4
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40104 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
10 mm
Thread Sealant
Without Thread Sealant

Similar Products

Model Number a Dimensions Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-06C E-Z Clip Series Clip

0.71 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-08C E-Z Clip Series Clip

0.81 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-12C E-Z Clip Series Clip

1.08 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Product Questions & Answers (2)

Question by: Troy W on Apr 25, 2025, 8:50 PM
Are these clips just for Danfoss and Eaton A/C systems?
Answer by: Customer Support on Apr 27, 2025, 7:05 AM
These clips are part of the E-Z Clip system designed for Danfoss / Eaton A/C Refrigeration Products.
Question by: Danny E on May 31, 2025, 6:09 PM
What kind of fittings do the E-Z Clip Series Clips work with?
Answer by: Customer Support on Jun 2, 2025, 8:37 AM
These E-Z Clip Series Clips are designed to be used with A/C refrigeration systems, specifically for secure and efficient connections with compatible hoses and fittings. They're perfect for ensuring a reliable fit in your refrigeration setup.
