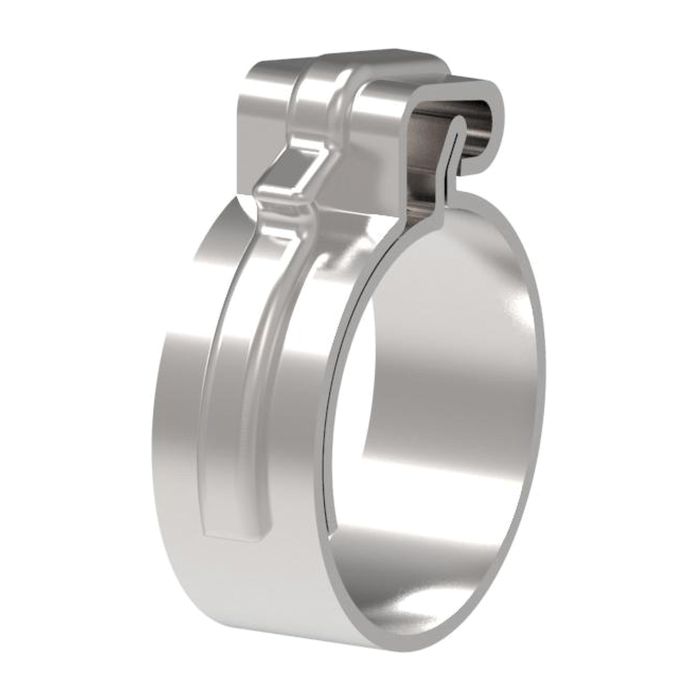

main product photo

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Ask A Question

Description & Features

The Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips offer a reliable solution for hose assembly in refrigeration and A/C systems. The clip's assembly process is straightforward and does not require mandrels or thread sealants. Designed with convenience in mind, these clips eliminate guesswork and prevent leaking crimps.

Each component is created for ease of use, especially in confined areas. The process involves cutting the hose to the appropriate length, slipping on two clips, oiling the nipple, inserting the nipple into the hose, snapping on the cage, and finally sliding and closing the clips using FT1357 Clip Closing Pliers.

Catalog Number: C1EX48

Supplier Part Number: 1F40104-12C

Specifications

Brand
Danfoss
a Dimensions
1.08 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Dimensions
1.08 in ID
Fitting Type
Clip
For Use With
GH134 Series Hoses
Hose Dash Size
12
Inside Diameter
1.085 in
Material
Stainless Steel
Material Construction
Stainless Steel
Segment Code
A
Series
1F40104 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Size
12 mm
Thread Sealant
Without Thread Sealant

Similar Products

Model Number a Dimensions Product Description Price Action
E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-06C E-Z Clip Series Clip

0.71 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-08C E-Z Clip Series Clip

0.81 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

E-Z Clip Series Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

1F40104-10C E-Z Clip Series Clip

0.91 in

Danfoss / Eaton E-Z Clip System A/C Refrigeration Products Clips

Product Questions & Answers (3)

Question by: Steve R on Jun 15, 2025, 8:51 AM
reckon these clips work with the danfoss ez system for ac stuff?
Answer by: Customer Support on Jun 16, 2025, 3:09 PM
These are specifically the clips for the Danfoss / Eaton E-Z Clip System in A/C refrigeration products.
Question by: Scott R on Aug 27, 2025, 8:47 PM
What exactly do these E-Z clips do?
Answer by: Customer Support on Aug 29, 2025, 8:46 PM
Essentially, these clips are part of the Danfoss / Eaton E-Z Clip System for A/C refrigeration products.
Question by: Keith S on Nov 26, 2025, 4:56 PM
How do these E-Z Clip system clips work for A/C refrigeration lines?
Answer by: Customer Support on Nov 28, 2025, 12:00 PM
These clips are part of the E-Z Clip system, designed to provide an easy and reliable method for securing A/C refrigeration lines. They are specifically engineered to work with Danfoss and Eaton systems, ensuring a snug fit and dependable performance in various applications.
