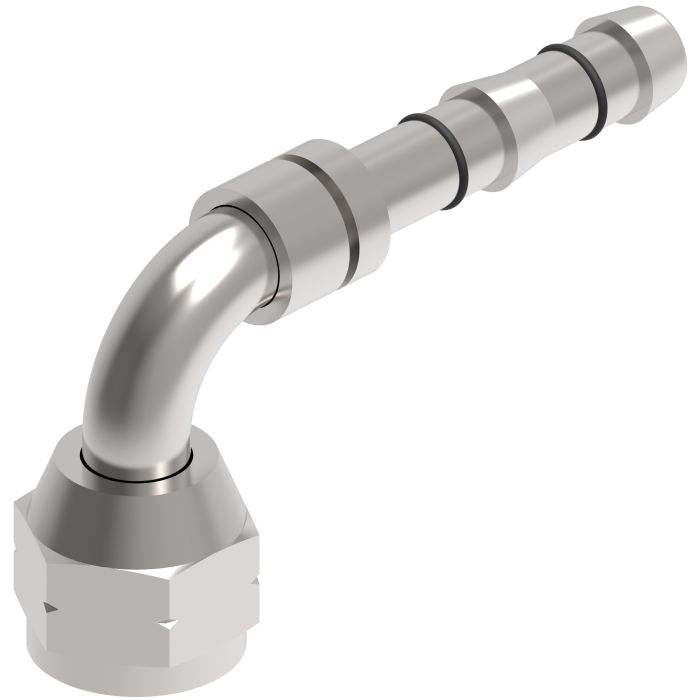

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, 90 deg Elbow

Ask A Question

Description & Features

Product name: E-Z Clip Series Fitting 3/4-16 Female SAE 45 deg Swivel -08 Hose 90 deg Elbow designed by Danfoss Power Solutions II LLC Aeroquip caters to specialized applications requiring precise connections. This fitting features a 45-degree swivel and a 90-degree elbow offering essential versatility.

With a thread size of 3/4-16 and a hose size of -08 it ensures a robust and secure fit. The female SAE 45-degree end and universal flares support various industrial requirements. The fitting includes a proprietary nipple assembly with two black O-rings that should not be removed or replaced.

Manufactured to meet ECCN: EAR99 standards it is classified under UNSPSC: 40183100. Installation is simplified requiring no power supply and minimal tools. Its design eliminates the need for guesswork or leaking crimps making it ideal for confined spaces.

Supplier Part Number: FJ3149-03-0808S

MPN: FJ3149-03-0808S

Specifications

Brand
Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.2 in
d Dimensions
2.23 in
Dimensions
3.18 in L x 0.88 in W x 1.9 in H
Drop Dimensions
1.09 in
End Gender 1
Female
End Gender 2
Male
End Size 1
3/4 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
2.31 in
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3149 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF
Torque Rating
44 to 48 lb-ft

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, 90 deg Elbow

FJ3149-01-0606S E-Z Clip Series Female SAE 90 Elbow

5/8-18

06

1.8 in

1.77 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, 90 deg Elbow

FJ3149-04-1010S E-Z Clip Series Female SAE 90 Elbow

7/8-14

10

2.23 in

2.31 in

Product Questions & Answers (2)

Question by: Warren R on Jan 13, 2026, 7:10 PM
Hey, will this fitting hold up okay if I'm running hydraulic fluid through it pretty much all day?
Answer by: Customer Support on Jan 15, 2026, 6:45 AM
This fitting is designed for specialized applications needing precise connections, so it should work for continuous use as long as you stay within its rated torque of 44-48 lb/ft.
Question by: Wade C on Sep 23, 2025, 10:23 AM
what tools do i actually need to put this fitting together? got a buddy saying i need some special crimper but that don't sound right
Answer by: Customer Support on Sep 24, 2025, 12:47 PM
No crimper needed here. The E-Z Clip system works with a pair of FT1357 Clip Closing Pliers and a guillotine blade or equivalent cutting tool to square off the hose end. You'll also want refrigerant oil compatible with your A/C or refrigeration system to lubricate the nipple before insertion. That's really the full toolkit. The whole point of the E-Z Clip design is that you don't need power equipment or a crimping setup to get a solid, leak-free connection.
