main product photo

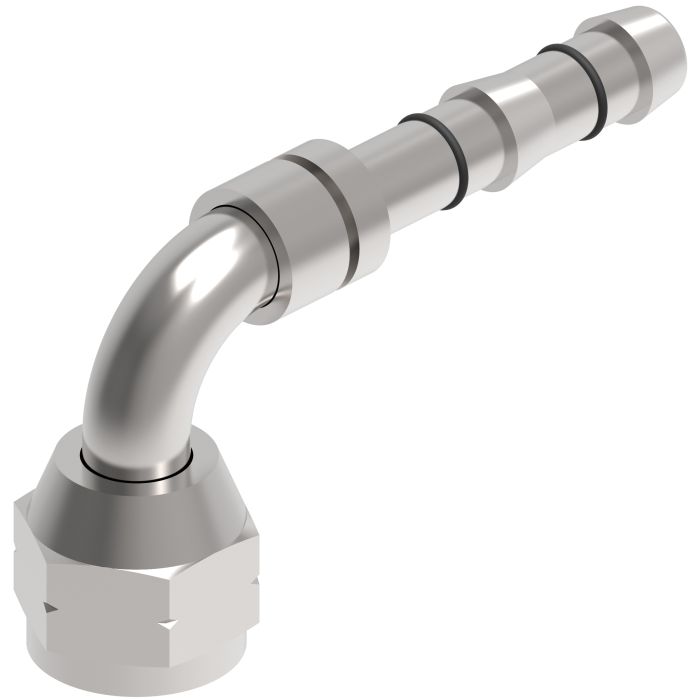

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

Crafted for precision and reliability this fitting is an indispensable component in specialized applications. It boasts a Female SAE 45-degree swivel designed to integrate seamlessly with a -10 hose facilitating optimal flow and connection stability. The 90-degree elbow configuration is engineered to provide efficient directional flow and ease of use in confined spaces. The universal flare fitting ensures compatibility with a wide range of systems making it a versatile solution for industry-specific needs.

No guesswork no leaking crimps and no power supply needed this fitting is as simple to use as a pair of pliers. Designed for easy installation it includes steps such as cutting the hose to the proper length slipping on clips oiling the nipple inserting the nipple into the hose snapping on the cage sliding the clips and closing the clips using FT1357 Clip Closing Pliers.

Constructed from durable materials the fitting system includes appropriately sized clips and cages a nipple assembly with black O-rings and compatibility with GH134 Multi-Refrigerant hose. Note that E-Z Clip components should not be reused to ensure safety and performance.

Supplier Part Number: FJ3149-04-1010S

Specifications

Brand
Danfoss
a Dimensions
3.09 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.54 in
d Dimensions
2.23 in
Dimensions
3.59 in L x 1 in W x 2.06 in H
Drop Dimensions
1.19 in
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
2.31 in
Hex Size
1 x 1 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3149 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, 90 deg Elbow

FJ3149-01-0606S E-Z Clip Series Female SAE 90 Elbow

5/8-18

06

1.8 in

1.77 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, 90 deg Elbow

FJ3149-03-0808S E-Z Clip Series Female SAE 90 Elbow

3/4-16

08

2.23 in

2.31 in

Product Questions & Answers (2)

Question by: Connie H on Oct 14, 2025, 1:02 PM
putting this on an A/C line in a tight spot under the dash -- does the 90 degree elbow actually give you enough room to work, or is it still a bear to get in there?
Answer by: Customer Support on Oct 16, 2025, 6:36 AM
Tight underdash work is exactly what that 90 degree configuration is built for. The elbow redirects the hose run so you're not fighting a straight fitting in a corner where there's no clearance. The E-Z Clip system itself helps too since you only need the FT1357 Clip Closing Pliers to finish the connection. No crimping machine, no power source. As long as you cut the hose square, get both clips slipped on before seating the nipple, and make sure there's no gap between the hose end and the nipple shoulder, it goes together pretty clean even in confined areas.
Question by: Denise O on Jul 22, 2025, 7:16 AM
trying to hook up a -10 hose, what all does this fitting actually connect to?
Answer by: Customer Support on Jul 23, 2025, 12:17 PM
On the hose side it’s made for a -10 GH134 Multi-Refrigerant hose using the E-Z Clip setup with a cage and two clips. On the other end you’ve got a 7/8-14 female SAE 45 degree swivel connection, and the fitting body is a 90 degree elbow for routing in tight spots.
