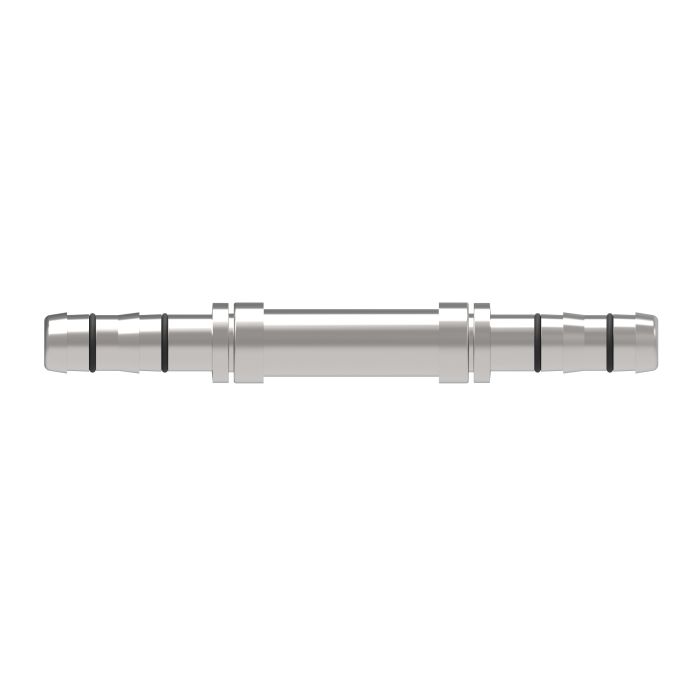

main product photo

E-Z Clip Series Fitting, -06 Hose Splicer

Ask A Question

Description & Features

The Danfoss Power Solutions (II LLC Aeroquip) E-Z Clip Series Fitting -06 Hose Splicer is designed for use in specialized applications. This splicer ensures a secure and reliable connection without the need for power supplies or complicated tools.

The fitting is compatible with refrigeration or air conditioning systems and features a straightforward installation process. Equipped with male ends sized at 0.38 inches it suits line hose or tube connections. The E-Z Clip system eliminates the guesswork typically associated with hose assembly and prevents leaking crimps enhancing overall dependability.

A specific nipple assembly with two pre-installed black o-rings ensures optimal sealing while the included cage and clips facilitate ease of use even in confined spaces. Following the assembly instructions is critical to maintain safety and compliance with relevant guidelines.

Supplier Part Number: FJ3045-0606S

MPN: C1EY34

Specifications

Brand
Danfoss
a Dimensions
4.63 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
1.58 in
d Dimensions
1.58 in
Dimensions
4.63 in L x 0.4 in W x 0.4 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
3/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3045 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, -08 Hose Splicer

FJ3045-0808S E-Z Clip Series Hose Splicer

08

1.68 in

E-Z Clip Series Fitting, -10 Hose Splicer

FJ3045-1010S E-Z Clip Series Hose Splicer

10

2.58 in

E-Z Clip Series Fitting, -12 Hose Splicer

FJ3045-1212S E-Z Clip Series Hose Splicer

12

1.57 in

Product Questions & Answers (1)

Question by: Merle F on Mar 3, 2026, 6:08 AM
trying to splice a -06 A/C hose without dragging out a crimper, is this the right kind of fitting?
Answer by: Customer Support on Mar 4, 2026, 5:01 PM
For joining a -06 hose in refrigeration or air conditioning service, the E Z Clip splicer is made to go together with clips and a cage, so you do not need a power supply or crimp equipment. It uses a nipple assembly with two pre installed black o rings for sealing, and you close the clips with the FT1357 clip closing pliers.
