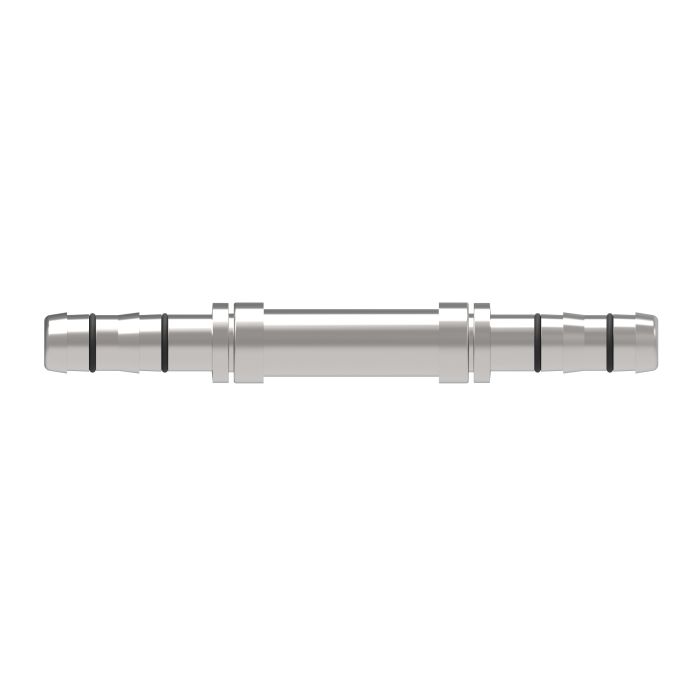

E-Z Clip Series Fitting, -08 Hose Splicer

Ask A Question

Description & Features

The E-Z Clip Series Fitting -08 Hose Splicer from Danfoss Power Solutions (II LLC Aeroquip) is tailored for specialized applications ensuring reliable connections for hose assemblies. This fitting is designed to fit a -08 hose size and features a male end type on both sides with a 0.5-inch end size.

The fitting integrates seamlessly with the Aeroquip E-Z Clip system providing a straightforward assembly process that eliminates guesswork and reduces the chance of leaks. No need for a mandrel or thread sealant making the setup process efficient and hassle-free.

To ensure precise installation follow the detailed assembly instructions which include cutting the hose to the appropriate length sliding on clips lubricating the nipple snapping on the cage and securing the clips using the FT1357 Clip Closing Pliers.

It is essential to adhere strictly to these instructions to prevent any unintended escape of refrigerant gases. The E-Z Clip components should not be reused to maintain the integrity of the hose assembly.

MPN: FJ3045-0808S

Supplier Part Number: FJ3045-0808S

Specifications

Brand
Danfoss
a Dimensions
4.76 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
1.68 in
d Dimensions
1.68 in
Dimensions
0.29 in L x 0.5 in W x 0.5 in H
End Gender 1
Male
End Gender 2
Male
End Size 1
1/2 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
08
Inside Diameter
0.32 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3045 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, -06 Hose Splicer

FJ3045-0606S E-Z Clip Series Hose Splicer

06

1.58 in

E-Z Clip Series Fitting, -10 Hose Splicer

FJ3045-1010S E-Z Clip Series Hose Splicer

10

2.58 in

E-Z Clip Series Fitting, -12 Hose Splicer

FJ3045-1212S E-Z Clip Series Hose Splicer

12

1.57 in

Product Questions & Answers (1)

Question by: Roger G on Jan 28, 2026, 3:48 PM
what all do you need to put one of these splicers together? asking cause I don't wanna order it and then find out I'm missing half the stuff to get it done
Answer by: Customer Support on Jan 30, 2026, 6:54 AM
You'll need a few things beyond the fitting itself. A guillotine blade or equivalent cutting tool gets the hose cut clean and square. Two appropriately sized clips and a cage go on per fitting. The FT1357 Clip Closing Pliers are required to close the clips properly. You'll also need refrigerant oil that's compatible with your system to lubricate the nipple before insertion. The GH134 Multi-Refrigerant hose is the recommended hose for this setup. Once you've got all that together, the assembly process moves pretty quick.
