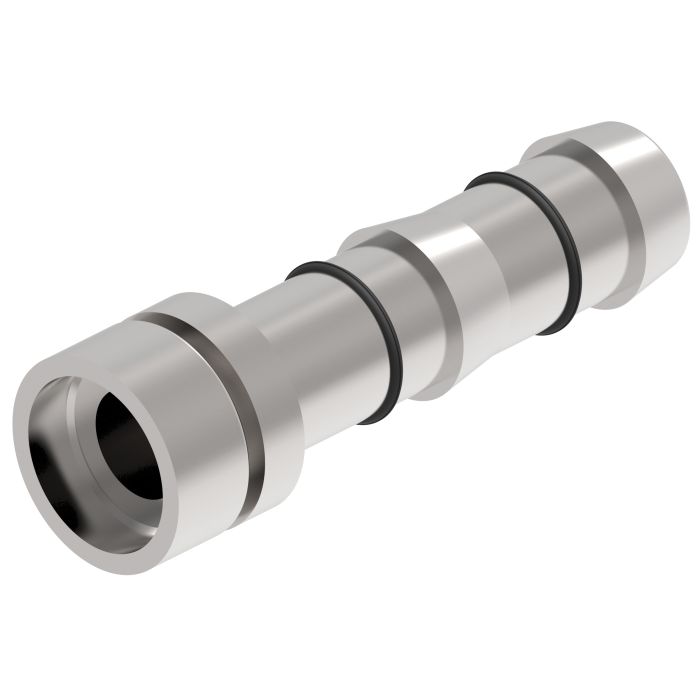

main product photo

E-Z Clip Series Fitting, 0.38 Lifesaver, -06 Hose, Straight

Ask A Question

Description & Features

The E-Z Clip Series Fitting 0.38 Lifesaver -06 Hose Straight by Danfoss Power Solutions (II LLC Aeroquip) is precision-engineered for specialized applications. Designed with a male 0.375 end size and a braze end type this fitting ensures secure and leak-free connections. The 0.375 tube O.D. and -06 hose size make it compatible with various industrial systems. Featuring a no-mandrel-required design and no thread sealant needed its assembly process is straightforward and efficient.

ECCN: EAR99

Supplier Part Number: FF12262-0606

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.005 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Braze, Hose
Connection Type 1
Hose
Connection Type 2
Braze
Construction Style
Reusable
Cut-Off Factor
1.52 in
Dimensions
2 in L x 1/2 in W x 1/2 in H
e Dimensions
0.38 in
End Gender 1
Male
End Size 1
3/8 in
End Size 2
3/8 in
Finish
Protective Oil
Fitting Type
Nipple
For Use With
GH134 Series Hoses
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FF12262 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Tube Outside Diameter
0.38 in

Similar Products

Model Number Tube O.D. Hose Dash Size a Dimensions e Dimensions Price Action
E-Z Clip Series Fitting, 0.38 Lifesaver, -08 Hose, Straight

FF12262-0608 E-Z Clip Series Lifesaver Fitting

0.375

08

2.023 in

0.38 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -08 Hose, Straight

FF12262-0808 E-Z Clip Series Lifesaver Fitting

0.5

08

2.023 in

1/2 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -10 Hose, Straight

FF12262-0810 E-Z Clip Series Lifesaver Fitting

0.5

10

2.03 in

1/2 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -10 Hose, Straight

FF12262-1010 E-Z Clip Series Lifesaver Fitting

0.625

10

2.03 in

0.63 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -12 Hose, Straight

FF12262-1012 E-Z Clip Series Lifesaver Fitting

0.625

12

2.06 in

0.63 in

E-Z Clip Series Fitting, 0.75 Lifesaver, -12 Hose, Straight

FF12262-1212 E-Z Clip Series Lifesaver Fitting

0.75

12

2.11 in

3/4 in

Product Questions & Answers (1)

Question by: Howard P on May 28, 2025, 6:49 PM
what's the deal with the o-rings on this nipple assembly, can I swap them out if they look worn?
Answer by: Customer Support on May 29, 2025, 9:47 PM
Those two black o-rings on the nipple are not field-replaceable. They're a specific rubber compound and size chosen for the application, and pulling them off or swapping them with something else will compromise the integrity of the assembly. If the nipple looks worn or the o-rings are questionable, the right move is a fresh nipple assembly rather than trying to service those seals in place.
