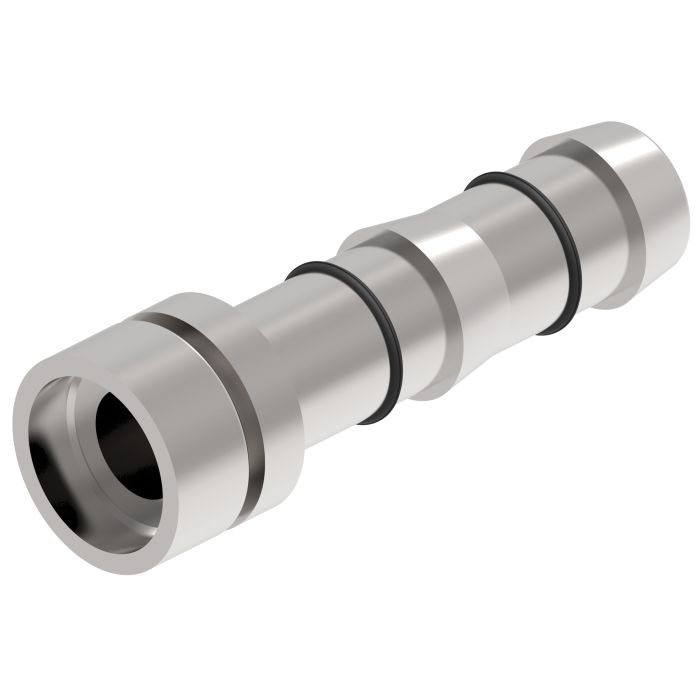

E-Z Clip Series Fitting, 0.38 Lifesaver, -08 Hose, Straight

Ask A Question

Description & Features

The Lifesaver Braze Nipple is a reliable component in refrigeration and A/C systems. Designed with a male fitting end and a -08 hose size this fitting ensures a secure connection without the hassle of leaking crimps or requiring a power supply. The 0.38-inch OD and 0.5-inch end size provide a precise fit essential for industrial-grade applications.

Constructed to withstand demanding environments it is straightforward to install even in tight spaces. Use the FT1357 Clip Closing Pliers for an accurate clip closure ensuring dependable performance. The nipple must be lubricated with the compatible system's compressor oil to facilitate smooth insertion into the hose.

Follow the detailed assembly instructions to avoid potential hazards and ensure the safe operation of the refrigeration system. This product is classified under ECCN EAR99 signifying its compliance with export regulations.

MPN: FF12262-0608

Supplier Part Number: FF12262-0608

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.023 in
Compatible Hose ID
0.38 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Braze, Hose
Connection Type 1
Hose
Connection Type 2
Braze
Construction Style
Reusable
Cut-Off Factor
1.54 in
Dimensions
2.03 in L x 0.622 in W x 0.622 in H
e Dimensions
0.38 in
End Gender 1
Male
End Size 1
3/8 in
End Size 2
1/2 in
Finish
Protective Oil
Fitting Type
Nipple
For Use With
GH134 Series Hoses
Hose Dash Size
08
Inside Diameter
0.32 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FF12262 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Tube Outside Diameter
0.38 in

Similar Products

Model Number Tube O.D. Hose Dash Size a Dimensions e Dimensions Price Action
E-Z Clip Series Fitting, 0.38 Lifesaver, -06 Hose, Straight

FF12262-0606 E-Z Clip Series Lifesaver Fitting

0.375

06

2.005 in

0.38 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -08 Hose, Straight

FF12262-0808 E-Z Clip Series Lifesaver Fitting

0.5

08

2.023 in

1/2 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -10 Hose, Straight

FF12262-0810 E-Z Clip Series Lifesaver Fitting

0.5

10

2.03 in

1/2 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -10 Hose, Straight

FF12262-1010 E-Z Clip Series Lifesaver Fitting

0.625

10

2.03 in

0.63 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -12 Hose, Straight

FF12262-1012 E-Z Clip Series Lifesaver Fitting

0.625

12

2.06 in

0.63 in

E-Z Clip Series Fitting, 0.75 Lifesaver, -12 Hose, Straight

FF12262-1212 E-Z Clip Series Lifesaver Fitting

0.75

12

2.11 in

3/4 in

Product Questions & Answers (1)

Question by: Curt H on Apr 15, 2025, 12:14 PM
How do I know I'm getting the right fit with this thing?
Answer by: Customer Support on Apr 17, 2025, 10:16 AM
This fitting is designed for a -08 hose size. Also, the end sizes are 0.375 inches and 0.5 inches, which should help you confirm it's the right part for your setup.
