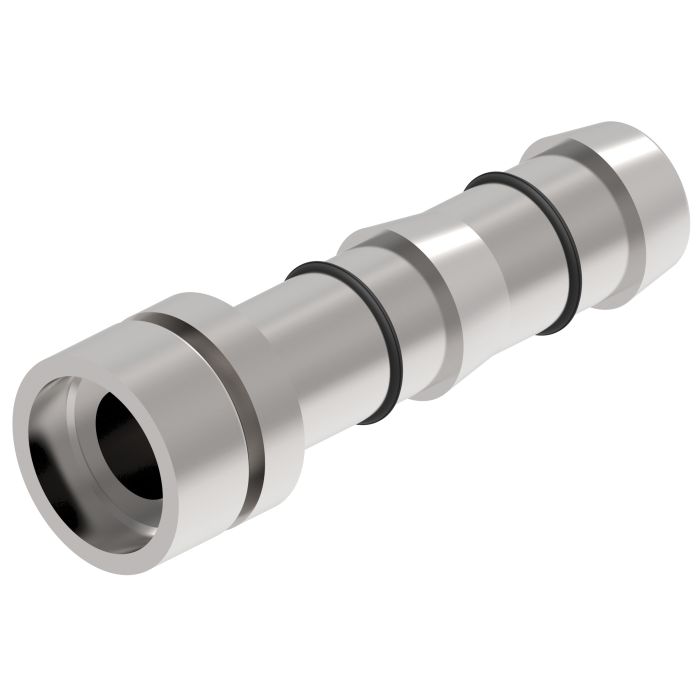

E-Z Clip Series Fitting, 0.50 Lifesaver, -08 Hose, Straight

Description & Features

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) this E-Z Clip Series Fitting is expertly designed for -08 hose applications offering a 0.50 Lifesaver straight connection.

The FF12262-0808 also known as the Lifesaver Braze Nipple facilitates precision in systems requiring a secure and efficient braze connection.

Designed with a male end size of 0.5 and hose compatibility this fitting ensures dependable use. The E-Z Clip design allows for quick reliable assembly without the need for power tools eliminating the guesswork often associated with fitting installations.

Avoid potential leaks as the fitting operates without a thread sealant. The use of properly sized clips and cage ensures a robust connection making this fitting an indispensable component for specialized applications.

Material compatibility is essential; ensure the use of refrigerant oil suitable for your system. Follow the provided assembly steps meticulously to maintain safe and optimal performance.

Supplier Part Number: FF12262-0808

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.023 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Braze, Hose	Connection Type 1 Hose	Connection Type 2 Braze	Construction Style Reusable	Cut-Off Factor 1.54 in	Dimensions 2.02 in L x 0.622 in W x 0.622 in H	e Dimensions 1/2 in	End Gender 1 Male	End Size 1 1/2 in	End Size 2 1/2 in	Finish Protective Oil	Fitting Type Nipple	For Use With GH134 Series Hoses	Hose Dash Size 08	Inside Diameter 0.32 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Seal Part If Included 1F40106-08	Series FF12262 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1/2 in

Similar Products

Model Number	Tube O.D.	Hose Dash Size	a Dimensions	e Dimensions
FF12262-0606 E-Z Clip Series Lifesaver Fitting	0.375	06	2.005 in	0.38 in
FF12262-0608 E-Z Clip Series Lifesaver Fitting	0.375	08	2.023 in	0.38 in
FF12262-0810 E-Z Clip Series Lifesaver Fitting	0.5	10	2.03 in	1/2 in
FF12262-1010 E-Z Clip Series Lifesaver Fitting	0.625	10	2.03 in	0.63 in
FF12262-1012 E-Z Clip Series Lifesaver Fitting	0.625	12	2.06 in	0.63 in
FF12262-1212 E-Z Clip Series Lifesaver Fitting	0.75	12	2.11 in	3/4 in

Product Questions & Answers (2)

Question by: Harvey F on May 30, 2025, 3:36 PM

So, this fitting doesn't need any of that thread sealant stuff? Just clips and go?

Answer by: Customer Support on Jun 1, 2025, 6:36 AM

That's right, this E-Z Clip fitting is designed to avoid leaks without needing any thread sealant. Just make sure to use the properly sized clips and cage for a secure connection.

Question by: Kurt W on Nov 8, 2025, 7:38 AM

got a -08 GH134 hose, is this the straight E-Z Clip fitting that takes the 0.50 lifesaver braze nipple end?

Answer by: Customer Support on Nov 10, 2025, 6:03 AM

For a -08 hose setup, this one matches that combo. It is an E-Z Clip Series straight fitting for -08 hose, and the braze end is a 0.50 Lifesaver male connection, also called a Lifesaver Braze Nipple.
