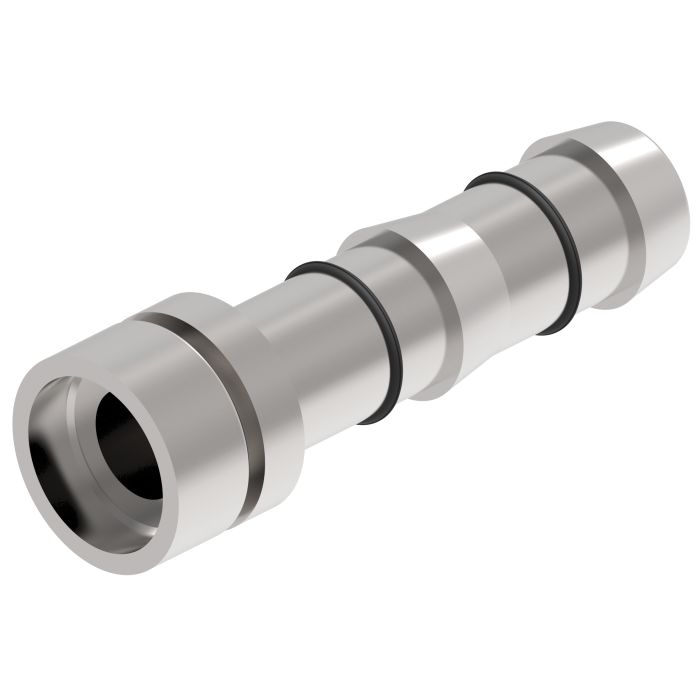

E-Z Clip Series Fitting, 0.50 Lifesaver, -10 Hose, Straight

Description & Features

The E-Z Clip Series Fitting 0.50 Lifesaver -10 Hose Straight by Danfoss Power Solutions is a crucial component for various special product applications. Engineered for easy and secure assembly this fitting eliminates guesswork and ensures no leaking crimps requiring only clip closing pliers for proper use.

Featuring a straightforward design it facilitates efficient installation even in confined spaces. The fitting includes appropriately sized clips and a cage compatible with GH134 Multi-Refrigerant hoses. As a safety precaution avoid reusing E-Z Clip components to maintain performance integrity.

Materials required for assembly include refrigerant oil and the specific nipple assembly which should remain unaltered. The fitting's durability and precision make it an essential part for industry-specific refrigerant systems minimizing the risk of accidental refrigerant escape.

Supplier Part Number: FF12262-0810

MPN: C1EX97

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.03 in	Compatible Hose ID 1/2 in	Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Braze, Hose	Connection Type 1 Hose	Connection Type 2 Braze	Construction Style Reusable	Cut-Off Factor 1.547 in	Dimensions 2.03 in L x 0.748 in W x 0.748 in H	e Dimensions 1/2 in	End Gender 1 Male	End Size 1 1/2 in	End Size 2 5/8 in	Finish Protective Oil	Fitting Type Nipple	For Use With GH134 Series Hoses	Hose Dash Size 10	Inside Diameter 0.38 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Seal Part If Included 1F40106-10	Series FF12262 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1/2 in

Similar Products

Model Number	Tube O.D.	Hose Dash Size	a Dimensions	e Dimensions
FF12262-0606 E-Z Clip Series Lifesaver Fitting	0.375	06	2.005 in	0.38 in
FF12262-0608 E-Z Clip Series Lifesaver Fitting	0.375	08	2.023 in	0.38 in
FF12262-0808 E-Z Clip Series Lifesaver Fitting	0.5	08	2.023 in	1/2 in
FF12262-1010 E-Z Clip Series Lifesaver Fitting	0.625	10	2.03 in	0.63 in
FF12262-1012 E-Z Clip Series Lifesaver Fitting	0.625	12	2.06 in	0.63 in
FF12262-1212 E-Z Clip Series Lifesaver Fitting	0.75	12	2.11 in	3/4 in

Product Questions & Answers (3)

Question by: Roy R on Aug 19, 2025, 4:06 PM

What all do I need on hand before putting one of these fittings together? Don't want to get halfway through and realize I'm missing something.

Answer by: Customer Support on Aug 21, 2025, 6:51 AM

Before you start, make sure you've got clip closing pliers (Eaton Aeroquip part FT1357), a guillotine blade or comparable square-cut hose cutter (FT1356 works), refrigerant oil that's compatible with your system, two appropriately sized clips, the cage, and the GH134 Multi-Refrigerant hose. The nipple assembly comes with two black o-rings already on it, and those should stay exactly where they are. Don't pull them off or swap them out. Once you've got all that together, the assembly goes pretty straightforward: cut the hose square, slide on the clips, oil the nipple well, seat it flush against the hose shoulder, snap on the cage, slide the clips over the cage arms, and close them with the pliers. Skipping the oil on the nipple is probably the most common mistake, so don't shortchange that step.

Question by: Wayne R on Sep 3, 2025, 2:53 PM

Will this fitting hold up if I'm using it with a multi-refrigerant hose? Don't want any leaks.

Answer by: Customer Support on Sep 4, 2025, 3:15 PM

This fitting is designed specifically for use with GH134 Multi-Refrigerant hoses, so it should provide a secure, leak-free connection when properly installed. Just be sure to follow the instructions carefully and use the correct clip closing pliers.

Question by: Johnny J on Sep 5, 2025, 8:57 AM

got a -10 GH134 multi-refrigerant hose, is this the straight fitting that goes with it or am i mixing stuff up

Answer by: Customer Support on Sep 7, 2025, 6:58 AM

For a GH134 Multi-Refrigerant hose in -10 size, this fitting is set up to match. It is an E-Z Clip straight fitting that uses the correct cage and two properly sized clips, and it is meant to be assembled with clip closing pliers instead of a crimp.
