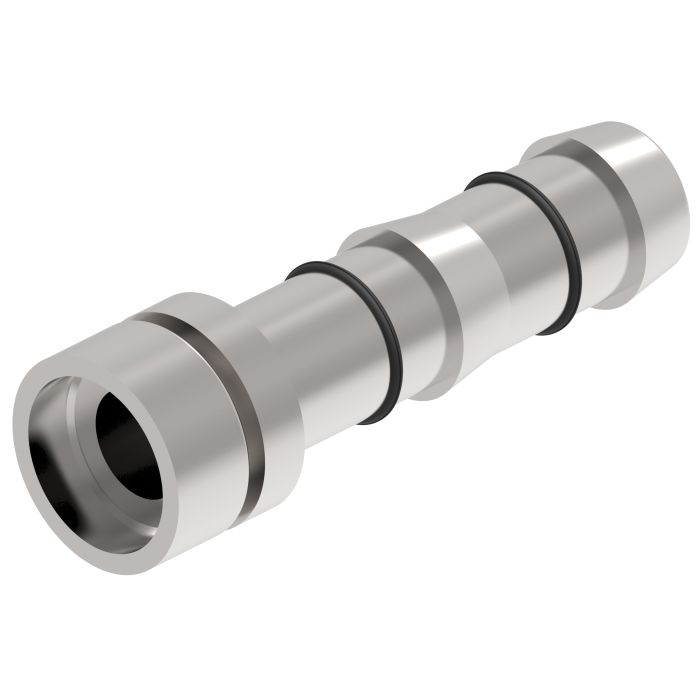

E-Z Clip Series Fitting, 0.63 Lifesaver, -10 Hose, Straight

Description & Features

Specially designed for durability and efficiency the Lifesaver Braze Nipple fits perfectly with a -10 hose. Manufactured by DANFOSS Power Solutions this fitting guarantees seamless connectivity with a tube outer diameter of 0.625 inches featuring reliable braze ends. It boasts a male end gender ensuring hassle-free assembly.

This component eliminates the need for guesswork and power supplies making it straightforward to use with a pair of pliers in confined spaces. The fitting ensures no leaking crimps providing secure and reliable connections under varying conditions.

For assembly lubricant must be applied generously to the nipple with refrigeration or A/C system compressor oil to reduce insertion force. Following the comprehensive assembly steps including cutting the hose to proper length installing clips and closing them with FT1357 Clip Closing Pliers guarantees safe and effective operation.

MPN: FF12262-1010

Supplier Part Number: FF12262-1010

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.03 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Braze, Hose	Connection Type 1 Hose	Connection Type 2 Braze	Construction Style Reusable	Cut-Off Factor 1.547 in	Dimensions 2.03 in L x 0.748 in W x 0.748 in H	e Dimensions 0.63 in	End Gender 1 Male	End Size 1 5/8 in	End Size 2 5/8 in	Finish Protective Oil	Fitting Type Nipple	For Use With GH134 Series Hoses	Hose Dash Size 10	Inside Diameter 0.38 in	Material Steel	Material Construction Carbon Steel	Seal Material HNBR	Seal Part If Included 1F40106-10	Series FF12262 Series	Sg 1 Cut The Hose Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length	Sg 2 Slip On Two Clips Install Two Proper-Sized Clips Onto the Cut End of the Hose	Sg 3 Oil The Nipple Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion	Sg 4 Insert The Nipple Into The Hose Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple	Sg 5 Snap On The Cage Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove	Sg 6 Slide The Clips Slide the Clips Over the Cage Arms and into the Channels on Each Arm	Sg 7 Close The Clips Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip	Sg Caution Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona	Sg Material Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla	Thread Sealant Without Thread Sealant	Tube Outside Diameter 5/8 in

Similar Products

Model Number	Tube O.D.	Hose Dash Size	a Dimensions	e Dimensions
FF12262-0606 E-Z Clip Series Lifesaver Fitting	0.375	06	2.005 in	0.38 in
FF12262-0608 E-Z Clip Series Lifesaver Fitting	0.375	08	2.023 in	0.38 in
FF12262-0808 E-Z Clip Series Lifesaver Fitting	0.5	08	2.023 in	1/2 in
FF12262-0810 E-Z Clip Series Lifesaver Fitting	0.5	10	2.03 in	1/2 in
FF12262-1012 E-Z Clip Series Lifesaver Fitting	0.625	12	2.06 in	0.63 in
FF12262-1212 E-Z Clip Series Lifesaver Fitting	0.75	12	2.11 in	3/4 in

Product Questions & Answers (3)

Question by: Terry T on Sep 27, 2025, 9:50 AM

what tool do you actually need to close the clips on this thing? got limited gear in my shop and want to make sure before ordering

Answer by: Customer Support on Sep 29, 2025, 6:18 AM

Closing the clips requires the FT1357 Clip Closing Pliers. That's a specific tool for this job, not just any pliers off the bench. When you use them, keep them positioned square on the clip connection points and hold that angle all the way through the close. Using the wrong tool or going at it crooked can leave you with a connection that won't hold the way it should.

Question by: Ronnie F on Mar 27, 2026, 8:59 AM

got a -10 GH134 multi-refrigerant hose, is this the right straight Lifesaver braze nipple for it?

Answer by: Customer Support on Mar 29, 2026, 7:01 AM

For a straight E-Z Clip Lifesaver setup on a -10 hose, this nipple is made to match that hose size and it uses a 0.625 inch tube OD braze end. It is a male-end fitting, and the seal part listed with it is 1F40106-10.

Question by: Todd S on Aug 31, 2025, 2:59 PM

Will this work on my AC line? Just want to make sure before I order.

Answer by: Customer Support on Sep 1, 2025, 6:31 PM

This Lifesaver braze nipple is designed for durability and efficiency, making it a good fit for AC lines using -10 hose. It creates a seamless, reliable connection.
