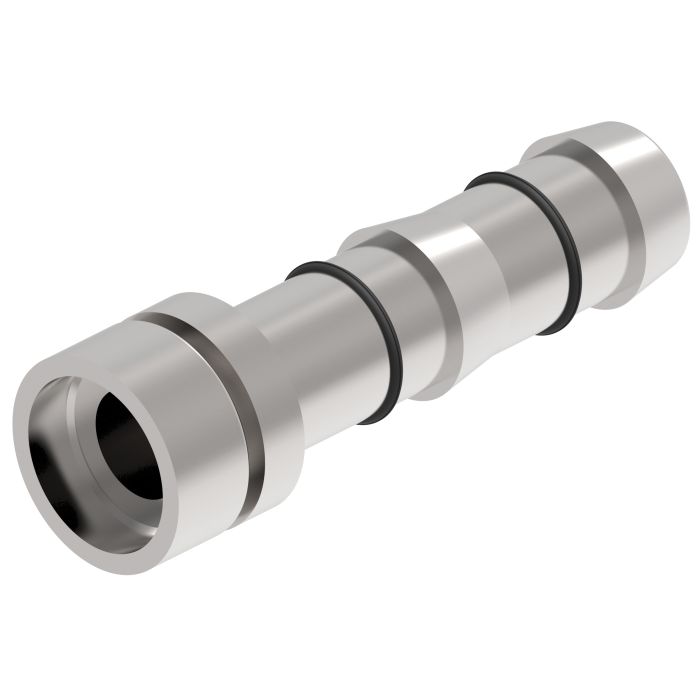

main product photo

E-Z Clip Series Fitting, 0.63 Lifesaver, -12 Hose, Straight

Ask A Question

Description & Features

The E-Z Clip Series Fitting 0.63 Lifesaver -12 Hose Straight is engineered for optimal performance in refrigeration and A/C systems. This fitting from Danfoss Power Solutions (II LLC Aeroquip) ensures reliable connections without the need for power tools simplifying the installation process even in limited spaces.

Its streamlined design eliminates the guesswork often associated with fittings.

Featuring a straight design it is compatible with a -12 hose and offers a male braze end for secure attachment. With a 0.63-inch tube outer diameter this fitting guarantees a tight seal without leaking crimps crucial for maintaining system integrity.

Materials required include refrigeration oil for lubrication and multi-refrigerant hose ensuring components are easily assembled without compromising performance. Designed to prevent any gaps between the hose and nipple this fitting allows for a smooth kink-free installation.

Brand: Danfoss Power Solutions (II LLC Aeroquip)

Supplier Part Number: FF12262-1012

Its robust and straightforward design makes the E-Z Clip Series fitting ideal for professional use ensuring dependability in complex refrigeration and A/C applications.

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.06 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Braze, Hose
Connection Type 1
Hose
Connection Type 2
Braze
Dimensions
2.06 in L
e Dimensions
0.63 in
End Gender 1
Male
End Size 1
5/8 in
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
Nipple
For Use With
GH134 Series Hoses
Hose Dash Size
12
Material
Steel
Material Construction
Carbon Steel
Seal Part If Included
1F40106-12
Series
FF12262 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Tube Outside Diameter
5/8 in

Similar Products

Model Number Tube O.D. Hose Dash Size a Dimensions e Dimensions Price Action
E-Z Clip Series Fitting, 0.38 Lifesaver, -06 Hose, Straight

FF12262-0606 E-Z Clip Series Lifesaver Fitting

0.375

06

2.005 in

0.38 in

E-Z Clip Series Fitting, 0.38 Lifesaver, -08 Hose, Straight

FF12262-0608 E-Z Clip Series Lifesaver Fitting

0.375

08

2.023 in

0.38 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -08 Hose, Straight

FF12262-0808 E-Z Clip Series Lifesaver Fitting

0.5

08

2.023 in

1/2 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -10 Hose, Straight

FF12262-0810 E-Z Clip Series Lifesaver Fitting

0.5

10

2.03 in

1/2 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -10 Hose, Straight

FF12262-1010 E-Z Clip Series Lifesaver Fitting

0.625

10

2.03 in

0.63 in

E-Z Clip Series Fitting, 0.75 Lifesaver, -12 Hose, Straight

FF12262-1212 E-Z Clip Series Lifesaver Fitting

0.75

12

2.11 in

3/4 in

Product Questions & Answers (2)

Question by: Carl P on Mar 19, 2026, 6:08 AM
what all do I need to actually put this fitting together? trying to make sure I got everything before I start
Answer by: Customer Support on Mar 21, 2026, 6:21 AM
You'll need a few specific items to do it right. A pair of FT1357 Clip Closing Pliers are required to close the clips once everything is seated. You'll also need a guillotine blade cutter or something equivalent to get a clean square cut on the hose. Two appropriately sized clips and a cage per fitting, the GH134 Multi-Refrigerant hose, and refrigerant oil compatible with your A/C or refrigeration system round out the list. The nipple assembly comes with two black o-rings already on it, and those should stay put. Don't remove or replace them.
Question by: Ross B on May 19, 2025, 6:37 AM
got a -12 A/C hose and not much room to work. is this the kind of fitting that goes on without a crimper?
Answer by: Customer Support on May 20, 2025, 12:06 PM
For tight spots, the E-Z Clip setup is meant to go together without power tools or crimping. You cut the hose square, slide on two clips, oil the nipple with the system’s refrigeration or compressor oil, push the nipple in until there’s no gap at the shoulder, snap the cage in the groove, then slide and close the clips using FT1357 clip closing pliers.
