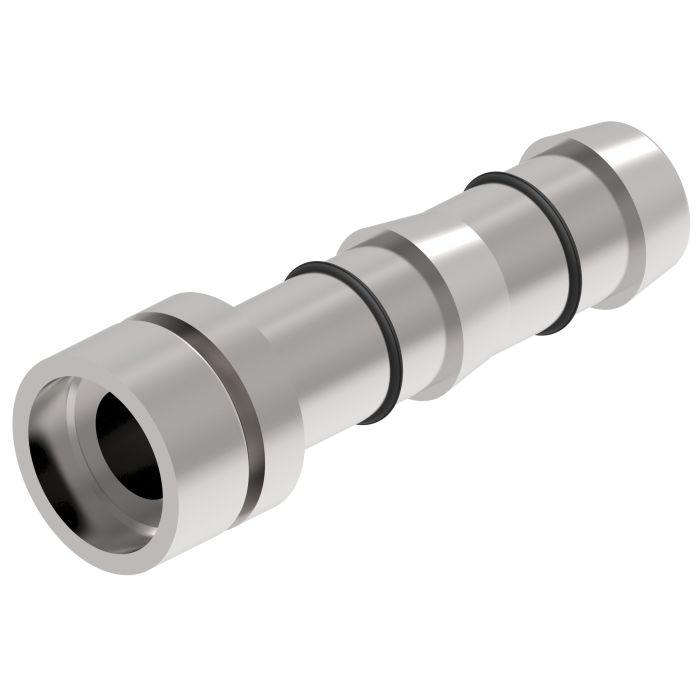

main product photo

E-Z Clip Series Fitting, 0.75 Lifesaver, -12 Hose, Straight

Ask A Question

Description & Features

The DANFOSS POWER SOLUTIONS (II LLC Aeroquip) E-Z Clip Series Fitting 0.75 Lifesaver -12 Hose Straight is designed for seamless integration with refrigeration and A/C systems. Its unique braze nipple end type ensures a secure and reliable connection with no guesswork and no power supply needed for installation.

Engineered for easy use in confined areas this fitting fits a -12 hose size and features a straight configuration. The product is equipped with a dual 0.75 end size and maintains secure connections without leaking crimps.

Each fitting includes a 0.75-inch tube O.D. and does not require a mandrel making it a convenient and efficient choice for specialized applications. The FF12262-1212 model simplifies assembly with clear instructions emphasizing the use of appropriate tools and materials for a reliable setup.

MPN: C1EY11

Supplier Part Number: FF12262-1212

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Braze, Hose
Connection Type 1
Hose
Connection Type 2
Braze
Construction Style
Reusable
Cut-Off Factor
1.58 in
Dimensions
2.1 in L x 0.906 in W x 0.906 in H
e Dimensions
3/4 in
End Gender 1
Male
End Size 1
3/4 in
End Size 2
3/4 in
Finish
Protective Oil
Fitting Type
Nipple
For Use With
GH134 Series Hoses
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FF12262 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Tube Outside Diameter
3/4 in

Similar Products

Model Number Tube O.D. Hose Dash Size a Dimensions e Dimensions Price Action
E-Z Clip Series Fitting, 0.38 Lifesaver, -06 Hose, Straight

FF12262-0606 E-Z Clip Series Lifesaver Fitting

0.375

06

2.005 in

0.38 in

E-Z Clip Series Fitting, 0.38 Lifesaver, -08 Hose, Straight

FF12262-0608 E-Z Clip Series Lifesaver Fitting

0.375

08

2.023 in

0.38 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -08 Hose, Straight

FF12262-0808 E-Z Clip Series Lifesaver Fitting

0.5

08

2.023 in

1/2 in

E-Z Clip Series Fitting, 0.50 Lifesaver, -10 Hose, Straight

FF12262-0810 E-Z Clip Series Lifesaver Fitting

0.5

10

2.03 in

1/2 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -10 Hose, Straight

FF12262-1010 E-Z Clip Series Lifesaver Fitting

0.625

10

2.03 in

0.63 in

E-Z Clip Series Fitting, 0.63 Lifesaver, -12 Hose, Straight

FF12262-1012 E-Z Clip Series Lifesaver Fitting

0.625

12

2.06 in

0.63 in

Product Questions & Answers (1)

Question by: Wes T on Nov 22, 2025, 5:16 PM
got a -12 GH134 multi-refrigerant hose here. is this the straight fitting that goes with it, and what ends am I dealing with?
Answer by: Customer Support on Nov 24, 2025, 4:40 PM
For a -12 GH134 Multi-Refrigerant hose, this E-Z Clip Lifesaver fitting matches that hose size and it is a straight configuration. One end is a 0.75 male braze nipple, and the other side is for the line, hose, or tube connection, with a 0.75 tube O.D. called out.
