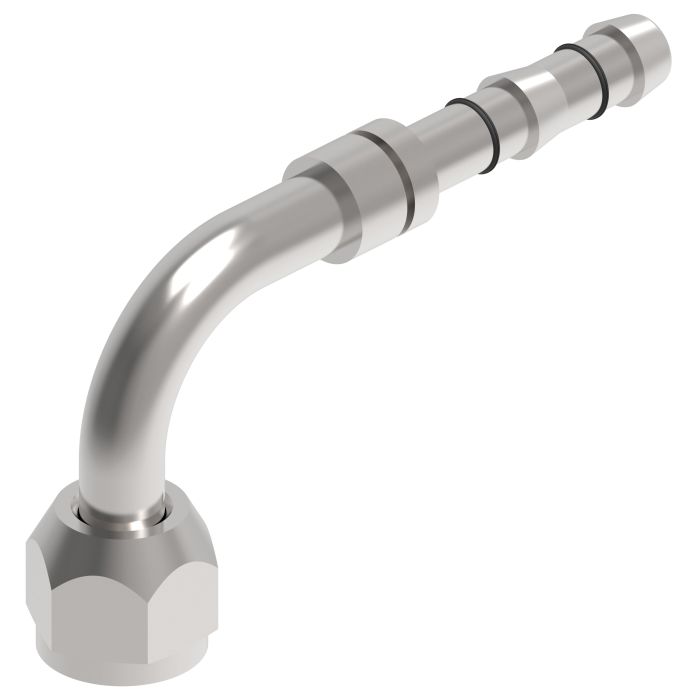

E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Long Pilot), -06 Hose, 90 deg Elbow

Ask A Question

Description & Features

This specialized E-Z Clip Series Fitting 5/8-18 Female O-Ring (Long Pilot) -06 Hose 90 deg Elbow is an industry-grade component by Danfoss Power Solutions (II LLC Aeroquip) designed for reliable performance. It features a 90-degree elbow design and facilitates seamless integration with a -06 hose. The fitting is efficient with its 5/8-18 UNF threading ensuring secure connections without the risk of leaking crimps.

Constructed for durability this product requires no mandrel simplifying the installation process. The unique long pilot design adds to its robust functionality making it an ideal choice for special applications. With end sizes measuring 0.625 inches for the female end and 0.38 inches for the male end it provides compatibility with various industrial systems.

The product ensures ease of assembly using basic tools emphasizing user-friendly features such as no power supply requirement and suitability for confined spaces. The secure connection is further enhanced by using the appropriate clip size and a compatible refrigerant oil for lubrication.

UNSPSC: 40183100

ECCN: EAR99

Supplier Part Number: FJ3288-01-0606S

Specifications

Brand
Danfoss
a Dimensions
3.32 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
1.79 in
d Dimensions
1.79 in
Dimensions
3.69 in L x 0.75 in W x 1.98 in H
Drop Dimensions
1.38 in
End Gender 1
Female
End Gender 2
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.38 in
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3288 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Long Pilot), -08 Hose, 90 deg Elbow

FJ3288-02-0808S E-Z Clip Series Long Pilot Fitting

3/4-16

08

2.23 in

1.62 in

Product Questions & Answers (2)

Question by: Frank H on Aug 1, 2025, 9:06 PM
got a -06 GH134 hose here, what all do i need to put this 90 degree long pilot fitting on it
Answer by: Customer Support on Aug 3, 2025, 3:49 PM
For an E-Z Clip assembly on -06 GH134 multi-refrigerant hose, you will need two properly sized clips for the fitting, the cage and nipple assembly, and the FT1357 clip closing pliers. The steps are cut the hose square, slip two clips on, oil the nipple with a generous amount of compatible refrigeration or A/C compressor oil, push the nipple in until the hose is against the shoulder, snap the cage into the groove, slide the clips into the cage channels, then close the clips with the pliers.
Question by: Clint G on Jul 12, 2025, 1:05 PM
what tool do you need to close the clips on this thing, and is it something most shops already got on hand?
Answer by: Customer Support on Jul 13, 2025, 1:38 PM
Closing the clips requires the FT1357 Clip Closing Pliers, which are a specific Aeroquip tool for this system. Most general shops won't already have them since they're purpose-built for E-Z Clip assemblies. You'll also want a guillotine blade or equivalent square-cut hose cutter. Beyond that, the only other thing you need is a refrigerant oil compatible with your refrigeration or A/C system for lubricating the nipple before insertion. No power tools, no crimper, nothing fancy.
