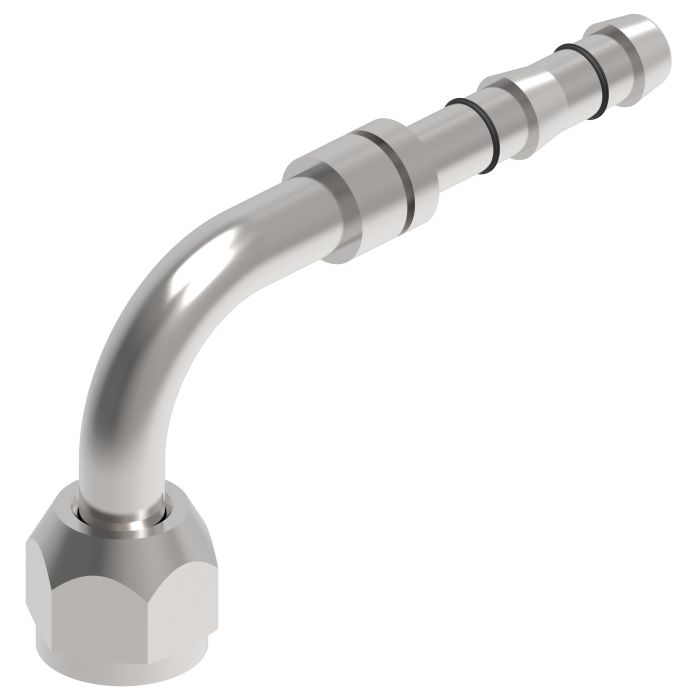

E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Long Pilot), -08 Hose, 90 deg Elbow

Ask A Question

Description & Features

The Aeroquip E-Z Clip Series fitting from Danfoss Power Solutions is engineered for precise applications in specialized refrigeration and air conditioning systems. With a 90-degree elbow and a 3/4-16 female O-ring (long pilot) design this fitting ensures reliable connectivity and a secure seal.

Key attributes include a -08 hose size and a 1.62-inch drop dimension making it suitable for confined spaces. The fitting does not require a mandrel and the package includes the required seal part 1F40106-08. The connection ends are designed with a 3/4-16 thread size and do not necessitate thread sealant.

This product is simple to assemble with standard tools and requires no guesswork or additional power supply. The high-quality materials ensure no leaking crimps providing dependable performance.

MPN: FJ3288-02-0808S

Supplier Part Number: FJ3288-02-0808S

Specifications

Brand
Danfoss
a Dimensions
3.77 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.22 in
d Dimensions
2.23 in
Dimensions
4.21 in L x 0.88 in W x 2.32 in H
Drop Dimensions
1.62 in
End Gender 1
Female
End Gender 2
Male
End Size 1
3/4 in
End Size 2
1/2 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.62 in
Hex Size
0.87 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-08
Series
FJ3288 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female O-Ring (Long Pilot), -06 Hose, 90 deg Elbow

FJ3288-01-0606S E-Z Clip Series Long Pilot Fitting

5/8-18

06

1.79 in

1.38 in

Product Questions & Answers (3)

Question by: Neil B on Apr 27, 2025, 10:20 AM
got a tight spot on an A/C line, is this 90 elbow one of the easy-clip style fittings or do i need a crimper
Answer by: Customer Support on Apr 29, 2025, 7:12 AM
No crimper is needed. It is an Aeroquip E-Z Clip series fitting that assembles with standard tools and the FT1357 clip closing pliers, so you are not doing a traditional crimp setup.
Question by: Harvey R on Aug 18, 2025, 7:07 AM
Will this fitting hold up alright in an air conditioning system that sees pretty regular use?
Answer by: Customer Support on Aug 20, 2025, 6:35 AM
Engineered for specialized refrigeration and air conditioning systems, this Aeroquip E-Z Clip fitting should provide reliable connectivity and a secure seal in regular use. The high-quality materials are designed to prevent leaking, so you can expect dependable performance.
Question by: Rod L on Dec 18, 2025, 7:08 PM
what all comes in the box with this fitting, and do I need to go hunting down a separate seal or anything before I put it together?
Answer by: Customer Support on Dec 20, 2025, 6:43 AM
The seal is already included. Part number 1F40106-08 ships with the fitting, so you won't need to track that down separately. You will need to have two appropriately sized clips and a cage on hand, along with some refrigeration or A/C compressor oil and a pair of FT1357 Clip Closing Pliers. A proper cutting tool like the FT1356 guillotine blade is also required to get a clean square cut on the hose before assembly.
