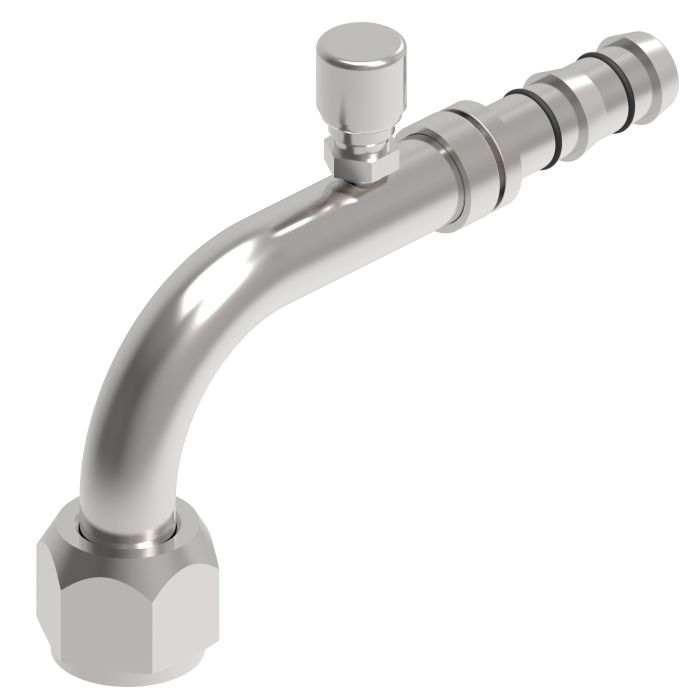

main product photo

E-Z Clip Series Fitting, 7/8-14 Female O-Ring (Long Pilot), -10 Hose, 90 deg Elbow With 7/16-20 Switch Port

Ask A Question

Description & Features

The E-Z Clip Series Long Pilot Fitting is specifically designed for high-performance reliable connections. Featuring a 7/8-14 Female O-Ring (Long Pilot) and a 90-degree Elbow with a 7/16-20 Switch Port this fitting is ideal for demanding industrial applications.

This fitting accommodates a -10 Hose and includes a 0.625 End Size 2 with UNF End Type 1. With a Drop Dimension of 2.3800 it ensures seamless integration and optimal performance in compact spaces. The fitting does not require a mandrel for installation simplifying the process considerably.

Engineered by Danfoss Power Solutions the E-Z Clip Series uses secure leak-proof connections eliminating the need for powered crimping tools. The fittings are durable and efficient suitable for various tough environments.

MPN: EAR99

Supplier Part Number: FJ3289-02-1010S

Specifications

Brand
Danfoss
a Dimensions
4.8 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
2.59 in
d Dimensions
2.77 in
Drop Dimensions
2 in
End Gender 1
Female
End Gender 2
Male
End Size 1
7/8 in
End Size 2
5/8 in
f Dimensions
0.63 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
h Dimensions
1.93 in
Hex Size
1.06 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3289 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions f Dimensions h Dimensions Price Action
E-Z Clip Series Fitting, 3/4-16 Female O-Ring (Long Pilot), -08 Hose, 90 deg Elbow With 7/16-20 Switch Port

FJ3289-01-0808S E-Z Clip Series Long Pilot Fitting

3/4-16

08

2.59 in

0.69 in

1.62 in

Product Questions & Answers (1)

Question by: Cody K on Jun 5, 2025, 12:24 PM
Does this fitting need any kind of crimping machine to put together, or can you assemble it out in the field with basic hand tools?
Answer by: Customer Support on Jun 7, 2025, 6:13 AM
No powered crimping equipment needed at all. The E-Z Clip system goes together with a pair of FT1357 Clip Closing Pliers, which are the specific tool called out for closing the clips once everything is seated. You cut the hose square, slip two clips onto the end, oil the nipple with compressor oil, push the nipple in flush to the shoulder, snap the cage into the groove, slide the clips over the cage arms, and close them down with the pliers. That's the whole process. Compact spaces are no problem either since you're not dragging a crimper into the equation.
