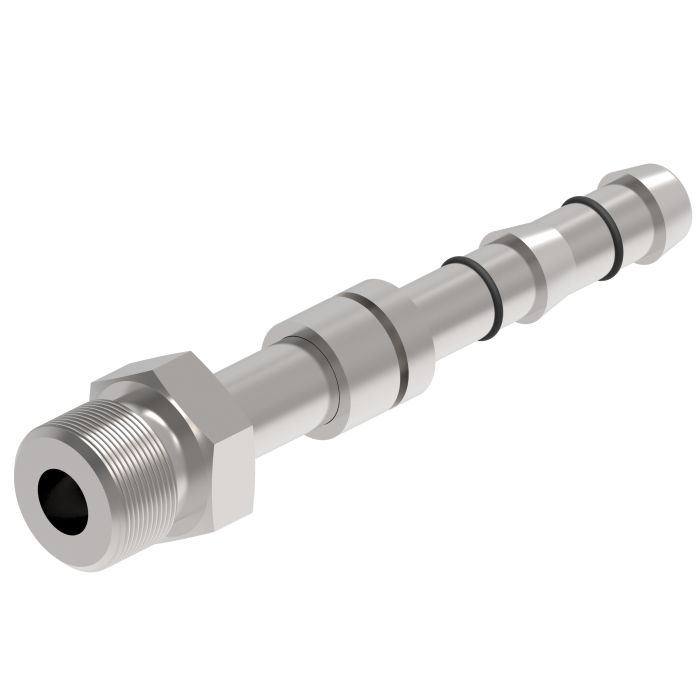

main product photo

E-Z Clip Series Fitting, 5/8-18 Male Insert O-Ring, -06 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions E-Z Clip Series Fitting featuring a 5/8-18 Male Insert O-Ring with a -06 Hose offers a reliable solution for specialized applications. Precision-engineered by Danfoss Power Solutions II LLC Aeroquip this fitting ensures a secure connection and is part of their renowned E-Z Clip System.

Designed for ease of use this fitting requires no power supply and eliminates the risk of leaking crimps. It's compatible with the GH134 Multi-Refrigerant hose and includes materials such as a clip closing plier guillotine blade or equivalent cutting tool and appropriate refrigerant oil. The fitting features a straightforward assembly process involving hose cutting clip installation nipple lubrication and proper nipple insertion into the hose.

To ensure reliability it includes a snap-on cage mechanism and slide clips that secure efficiently with FT1357 Clip Closing Pliers. Proper installation according to guidelines avoids potential hazards and ensures system integrity.

End 1 gender is male with a size of 0.625 UNF making it versatile for various setups. Notably it doesn't require a mandrel nor thread sealant simplifying maintenance and replacement.

MPN: FJ3026-0606S

Supplier Part Number: FJ3026-0606S

Specifications

Brand
Danfoss
a Dimensions
3.36 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Insert O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
1.83 in
d Dimensions
1.83 in
Dimensions
3.36 in L x 0.69 in W x 0.79 in H
End Gender 1
Male
End Size 1
5/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.67 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3026 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions H Price Action
E-Z Clip Series Fitting, 3/4-16 Male Insert O-Ring, -08 Hose, Straight

FJ3026-0808S E-Z Clip Series Male Insert Fitting

3/4-16

08

1.15 in

E-Z Clip Series Fitting, 7/8-14 Male Insert O-Ring, -10 Hose, Straight

FJ3026-1010S E-Z Clip Series Male Insert Fitting

7/8-14

10

1.35 in

E-Z Clip Series Fitting, 1-1/16-14 Male Insert O-Ring, -12 Hose, Straight

FJ3026-1212S E-Z Clip Series Male Insert Fitting

1-1/16-14

12

2.71 in

Product Questions & Answers (3)

Question by: Donna S on Feb 16, 2026, 6:01 PM
trying to replace a straight A/C fitting, is this one the 5/8-18 male insert o-ring style for a -06 hose?
Answer by: Customer Support on Feb 18, 2026, 10:30 AM
The key callouts match what you listed. It is a straight E-Z Clip Series male insert O-ring fitting with a 5/8-18 UNF male end, and it is made for -06 hose size.
Question by: Wade B on Jan 24, 2026, 2:53 PM
So, this fitting uses a clip system instead of crimping? Just wanna make sure I'm understandin' right.
Answer by: Customer Support on Jan 25, 2026, 7:47 PM
Correct, this fitting is part of the Danfoss Power Solutions E-Z Clip System, designed to eliminate the need for crimping, which also means no leaking crimps.
Question by: Ralph C on Apr 9, 2025, 6:02 PM
What all do I need to put one of these fittings together, or does it come with everything?
Answer by: Customer Support on Apr 11, 2025, 6:36 AM
You'll need a few things on hand before assembly. The fitting itself includes the nipple assembly, but you'll also need two appropriately sized clips and the cage, the GH134 Multi-Refrigerant hose cut to length, refrigerant or A/C compressor oil compatible with your system, FT1357 Clip Closing Pliers, and a guillotine blade cutter like the FT1356 or something equivalent that gives you a clean square cut. One thing worth knowing upfront: the two black o-rings on the nipple assembly are a specific compound and size and should not be removed or replaced. Just leave those alone.
