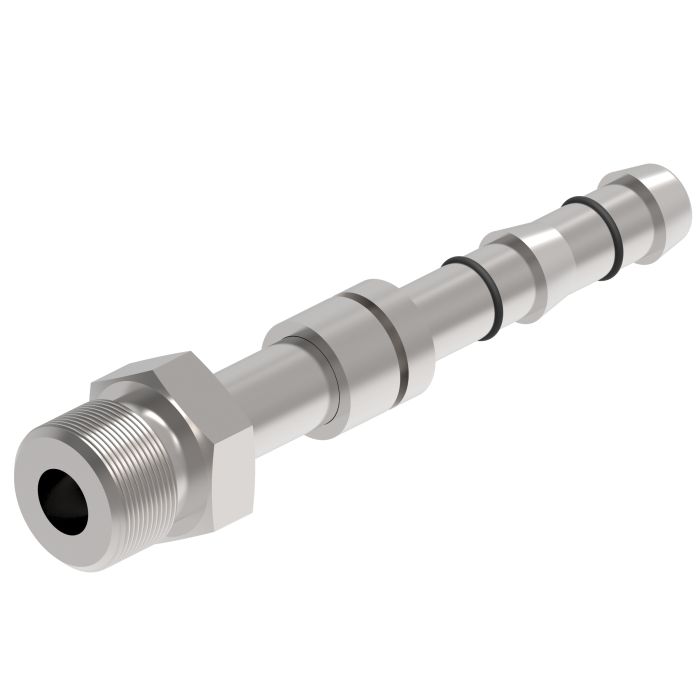

main product photo

E-Z Clip Series Fitting, 7/8-14 Male Insert O-Ring, -10 Hose, Straight

Ask A Question

Description & Features

The Danfoss Power Solutions E-Z Clip Series Fitting is designed to provide a reliable and efficient connection for A/C and refrigeration systems. Featuring a 7/8-14 Male Insert O-Ring and designed for a -10 hose size this fitting is essential for the high standards of the industry.

This fitting offers ease of use with no guesswork and eliminates the need for power tools making it convenient to use even in confined spaces. The design ensures zero leaking crimps providing robust and durable connections.

Its precise engineering includes a special rubber compound for the O-rings and an installation process that guarantees a secure fit. It's important to follow specific assembly instructions to avoid potential issues and ensure the safety and efficiency of the system.

**Product Model:** Special Products

**Supplier Part Number:** FJ3026-1010S

Specifications

Brand
Danfoss
a Dimensions
2.9 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Insert O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
1.35 in
d Dimensions
1.35 in
Dimensions
2.9 in L x 0.94 in W x 1.08 in H
End Gender 1
Male
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.94 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ3026 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions H Price Action
E-Z Clip Series Fitting, 5/8-18 Male Insert O-Ring, -06 Hose, Straight

FJ3026-0606S E-Z Clip Series Male Insert Fitting

5/8-18

06

1.83 in

E-Z Clip Series Fitting, 3/4-16 Male Insert O-Ring, -08 Hose, Straight

FJ3026-0808S E-Z Clip Series Male Insert Fitting

3/4-16

08

1.15 in

E-Z Clip Series Fitting, 1-1/16-14 Male Insert O-Ring, -12 Hose, Straight

FJ3026-1212S E-Z Clip Series Male Insert Fitting

1-1/16-14

12

2.71 in

Product Questions & Answers (3)

Question by: Janice M on Aug 13, 2025, 3:05 PM
trying to swap out a fitting, how do i tell if this one is the right size for my hose and threads?
Answer by: Customer Support on Aug 15, 2025, 6:34 AM
Match three things: it is a straight E-Z Clip male insert fitting for -10 hose, the thread is 7/8-14, and the end type is SAE with a male insert O-ring seal. If your setup calls for a -10 A/C or refrigeration hose connection with 7/8-14 male threads and an O-ring seal, that lines up with this part.
Question by: Diane S on Dec 6, 2025, 7:49 PM
Reckon this fitting will work with my existing Aeroquip hose, or is it made just for Danfoss stuff?
Answer by: Customer Support on Dec 8, 2025, 2:18 PM
This fitting is part of the Eaton Aeroquip E-Z Clip series, so it's designed to work specifically with GH134 Multi-Refrigerant hose and other components within that system. Mixing with other brands could lead to leaks or other problems.
Question by: Stan B on Oct 19, 2025, 1:39 PM
What all do I need to put one of these fittings together, and is there anything I absolutely can't skip during the install?
Answer by: Customer Support on Oct 21, 2025, 6:55 AM
You'll need a few things on hand before you start: FT1357 Clip Closing Pliers, a guillotine blade or equivalent cutting tool, two appropriately sized clips and a cage, GH134 Multi-Refrigerant hose, and refrigerant oil that's compatible with your A/C or refrigeration system. The oiling step is the one you really can't skip. Before you push the nipple into the hose, you have to coat it with a generous amount of compressor oil from your system. Skipping that makes insertion way harder and risks damaging the assembly. Also, the two black o-rings already on the nipple are a specific rubber compound and size. Leave them alone. Don't remove them, don't swap them out.
