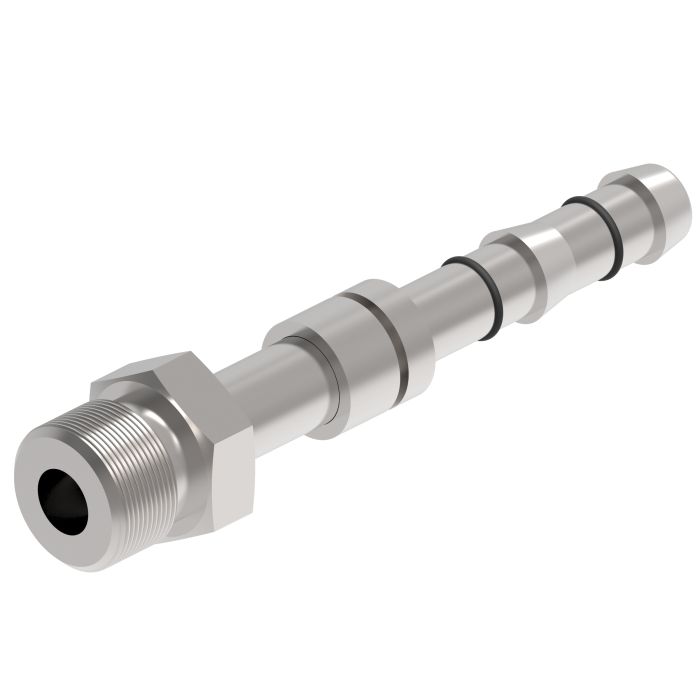

E-Z Clip Series Fitting, 1-1/16-14 Male Insert O-Ring, -12 Hose, Straight

Ask A Question

Description & Features

Experience precision and reliability with this fitting from Danfoss Power Solutions. The 1-1/16-14 male insert O-ring design offers a secure connection for refrigeration and A/C systems. It accommodates a -12 hose in a straight configuration. The E-Z Clip Series Fitting is engineered for a no-leak guarantee eliminating the need for guesswork during installation.

Constructed for ease of use no power supply is required and is operable with basic tools like pliers making it suitable even for confined spaces. High-quality materials ensure compatibility and long-term durability.

To assemble cut the hose to the proper length slip on two clips lubricate the nipple with compressor oil insert the nipple into the hose snap the cage into the groove slide the clips into the channels and close the clips using FT1357 pliers. Compliance with assembly instructions and EPA guidelines is mandatory.

**Supplier Part Number**: FJ3026-1212S

Specifications

Brand
Danfoss
a Dimensions
4.29 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Insert O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.71 in
d Dimensions
2.71 in
Dimensions
4.3 in L x 1.13 in W x 1.3 in H
End Gender 1
Male
End Size 1
12
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.141 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-12
Series
FJ3026 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions H Price Action
E-Z Clip Series Fitting, 5/8-18 Male Insert O-Ring, -06 Hose, Straight

FJ3026-0606S E-Z Clip Series Male Insert Fitting

5/8-18

06

1.83 in

E-Z Clip Series Fitting, 3/4-16 Male Insert O-Ring, -08 Hose, Straight

FJ3026-0808S E-Z Clip Series Male Insert Fitting

3/4-16

08

1.15 in

E-Z Clip Series Fitting, 7/8-14 Male Insert O-Ring, -10 Hose, Straight

FJ3026-1010S E-Z Clip Series Male Insert Fitting

7/8-14

10

1.35 in

Product Questions & Answers (2)

Question by: Gary G on Mar 7, 2026, 10:45 AM
Will this fitting hold up if I'm usin' it for a mobile A/C unit on a tractor? Gets pretty hot and bumpy out in the field.
Answer by: Customer Support on Mar 9, 2026, 8:09 AM
This fitting is made from high-quality materials designed for long-term durability, so it should handle the vibrations and heat from mobile A/C applications, as long as you follow the assembly instructions.
Question by: Wade H on Aug 6, 2025, 6:07 PM
What exactly does this fitting hook up to, and is it meant for regular A/C work on vehicles or more industrial refrigeration setups?
Answer by: Customer Support on Aug 8, 2025, 6:56 AM
Both, actually. The E-Z Clip fitting is built for refrigeration and A/C systems, and it pairs with a -12 hose in a straight configuration. The male insert O-ring end uses a 1-1/16-14 thread, and the whole system is designed around Aeroquip GH134 Multi-Refrigerant hose. So whether you're working a vehicle A/C job or a refrigeration line, this fitting covers that application.
