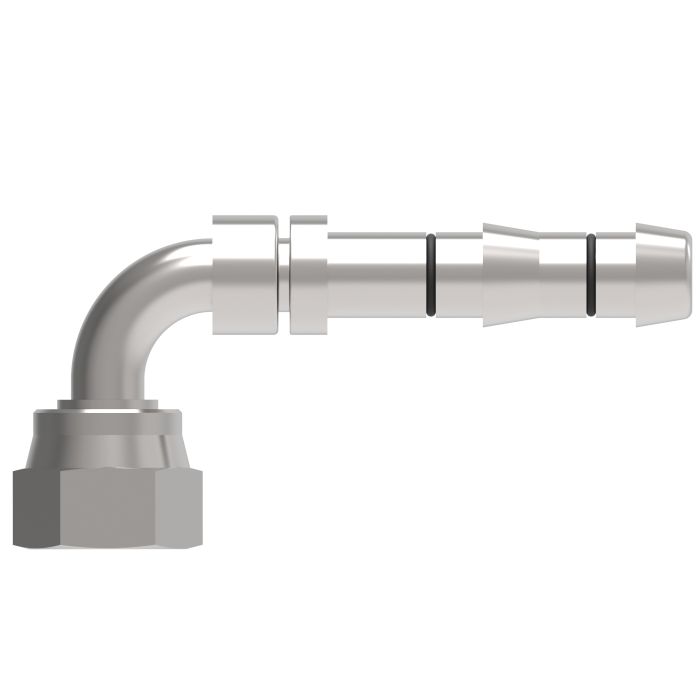

E-Z Clip Series Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

Designed for A/C and refrigeration hose assemblies, the E-Z Clip Series Fitting, 1-14 Female O-Ring Face Seal Swivel, -10 Hose, 90 deg Elbow is an Eaton Aeroquip fitting that combines a female O-Ring Face Seal swivel end with a 90-degree elbow geometry suited to routing in confined spaces. The swivel connection uses a 1-14 thread and pairs with -10 hose via the E-Z Clip assembly method, eliminating the need for crimping equipment or a power supply.

Assembly follows a clip-and-cage system: two clips are slid onto the hose end, the lubricated nipple is inserted fully to shoulder, a cage snaps into the nipple groove, and the clips are closed using Eaton Aeroquip FT1357 Clip Closing Pliers. The included seal part number is 1F40106-10. Rated for use down to -40°F, this fitting is compatible with GH134 Multi-Refrigerant hose and refrigerant compressor oils. E-Z Clip components are intended for single-use assemblies and should not be reused. The catalog reference number for this fitting is C1EY95.

SKU: FJ5994-04-1010S

Supplier Part Number (MPN): FJ5994-04-1010S

Alternate Part Numbers: C1EY95, MI-08749287, MINO-00015X89602

Specifications

Brand
Danfoss
a Dimensions
3.09 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
1.53 in
d Dimensions
1.53 in
Dimensions
3.65 in L x 1.12 in W x 2.2 in H
Drop Dimensions
1.27 in
End Gender 1
Female
End Gender 2
Male
End Size 1
1 in
End Size 2
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.27 in
Hex Size
1.141 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40
Seal Material
HNBR
Seal Part If Included
1F40106-10
Series
FJ5994 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (3)

Question by: Gene R on Jan 10, 2026, 10:49 AM
putting together an A/C hose assembly and don't have access to a crimper, does this fitting actually work without one?
Answer by: Customer Support on Jan 11, 2026, 1:07 PM
No crimping equipment needed at all. The E-Z Clip system uses a clip-and-cage method where you slide two clips onto the hose, push the lubricated nipple in to shoulder, snap the cage into the nipple groove, and then close the clips with Eaton Aeroquip FT1357 Clip Closing Pliers. That's the only tool required for the connection itself. Just make sure the hose end is cut square before you start, and use compressor oil compatible with your refrigeration or A/C system to lubricate the nipple before insertion. Skipping that lubrication step makes the nipple significantly harder to seat properly.
Question by: Norm B on Jan 30, 2026, 10:03 AM
trying to hook this up in a tight spot, is it a 90 degree elbow ORS swivel and what thread is on it?
Answer by: Customer Support on Jan 31, 2026, 10:23 AM
For tight routing, it uses a 90 degree elbow body with a female O-Ring Face Seal swivel end. The swivel thread on that ORS end is 1-14.
Question by: Rusty W on Jun 24, 2025, 9:33 PM
What kind of hose is this fitting supposed to work with?
Answer by: Customer Support on Jun 26, 2025, 7:24 AM
GH134 Multi-Refrigerant hose is what this fitting is designed for.
