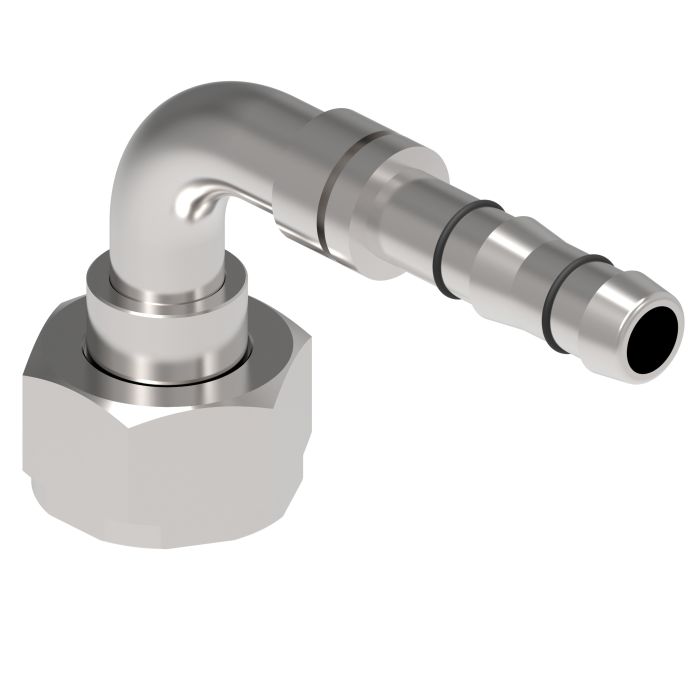

E-Z Clip Series Fitting, 1-14 Female RotaLok, -10 Hose, 90 deg Elbow

Ask A Question

Description & Features

The E-Z Clip Series Fitting 1-14 Female RotaLok -10 Hose 90 deg Elbow from Danfoss Power Solutions (II LLC Aeroquip) combines reliability with seamless assembly.

Designed specifically for special products it features a 90-degree elbow with a secure 1-14 thread fitting. The fitting is equipped with a female RotaLok end and a hose size of -10 ensuring compatibility for industrial needs.

Materials recommended for use include GH134 Multi-Refrigerant hose and refrigerant oil compatible with the refrigeration or A/C system. The fitting includes two specialized black O-rings on the nipple assembly which should not be removed or replaced.

Assembly requires clip closing pliers (FT1357) and a guillotine blade or equivalent cutting tool. The components such as clips and cages are designed for single use only.

MPN: EAR99

Supplier Part Number: FJ3225-1010S

Specifications

Brand
Danfoss
a Dimensions
2.98 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.43 in
d Dimensions
1.43 in
Drop Dimensions
2 in
End Gender 1
Female
End Gender 2
Male
End Size 1
1 in
End Size 2
5/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
h Dimensions
1.52 in
Hex Size
1.13 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
FJ3225 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (3)

Question by: Jerry M on Nov 30, 2025, 8:28 PM
what tools do i actually need to put this fitting together? got the hose already but not sure if i need anything special beyond what's in the shop
Answer by: Customer Support on Dec 2, 2025, 10:19 AM
You'll need clip closing pliers, specifically the FT1357 model, along with a guillotine blade (FT1356) or a comparable square-cutting tool to get the hose end clean and straight. Beyond that, have the appropriately sized clips and cage on hand, two per fitting, and make sure you're using refrigeration or A/C compressor oil compatible with your system to lubricate the nipple before insertion. The GH134 Multi-Refrigerant hose is what this fitting is built to work with. None of those steps require power tools or a crimper, which is part of the appeal with the E-Z Clip setup.
Question by: Janice H on Aug 9, 2025, 1:33 PM
got a -10 GH134 hose here, is this the right 90 fitting for it or am i barkin up the wrong tree
Answer by: Customer Support on Aug 10, 2025, 4:04 PM
For a -10 GH134 Multi-Refrigerant hose, this fitting matches that hose size and uses a 90 degree elbow with a 1-14 female RotaLok end. It is meant to be assembled as part of the E-Z Clip system using the proper cage and two clips.
Question by: Lyle B on Jan 19, 2026, 7:15 AM
Will this fitting hold up alright if I'm usin' it with GH134 hose?
Answer by: Customer Support on Jan 21, 2026, 6:34 AM
Yes, this fitting is designed for use with GH134 Multi-Refrigerant hose, as recommended by Danfoss Power Solutions.
