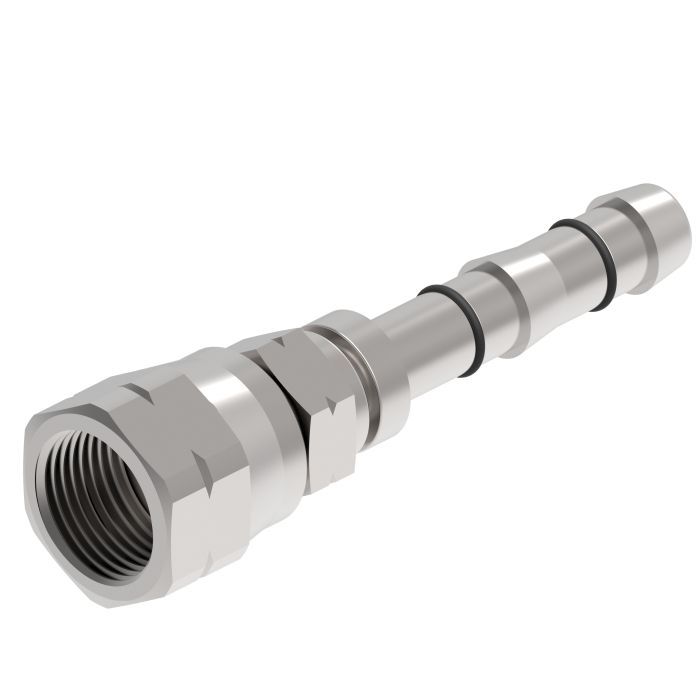

E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -06 Hose, Straight

Ask A Question

Description & Features

The E-Z Clip Series Fitting 5/8-18 Female SAE 45 deg Swivel -06 Hose Straight from Danfoss Power Solutions (II LLC Aeroquip) is crafted for precision and efficiency in special applications. This fitting features a 5/8-18 female SAE 45-degree swivel to ensure a secure and reliable connection for a -06 hose simplifying installation processes.

Utilizing clips instead of traditional crimps this fitting system eliminates the risk of leaks and does not require a power supply for setup. The E-Z Clip series allows for easy use even in confined areas making it ideal for specialized environments.

Its assembly is straightforward involving basic steps such as cutting the hose to the correct length slipping on clips oiling the nipple inserting the nipple into the hose and securing the clips with closing pliers. This method ensures no gaps and prevents potential damage during installation.

**End Size 1**: 0.625

**End Type 1**: SAE 45

**End Size 2**: 0.375

**End Type 2**: Line/Hose/Tube

**Hex Size 2**: 0.56

**Hose Size**: -06

ECCN: EAR99

MPN: FJ3057-01-0606S

Supplier Part Number: FJ3057-01-0606S

Specifications

Brand
Danfoss
a Dimensions
2.88 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.35 in
d Dimensions
1.62 in
Dimensions
2.88 in L x 0.56 in W x 0.64 in H
End Gender 1
Female
End Gender 2
Male
End Size 1
5/8 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
Nipple
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.56 x 0.75 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Seal Part If Included
1F40106-06
Series
FJ3057 Series
Sg 1 Cut The Hose
Cut the Hose to Proper Length. Be Sure the Cut is Made Square to the Hose Length
Sg 2 Slip On Two Clips
Install Two Proper-Sized Clips Onto the Cut End of the Hose
Sg 3 Oil The Nipple
Lubricate the Nipple with a Generous Amount of the Refrigeration or A/C System's Compressor Oil. This Must be Done to Lower the Force of Nipple Insertion
Sg 4 Insert The Nipple Into The Hose
Insert the Nipple into the Hose. There Should be No Gap Between the End of the Hose and the Shoulder on the Nipple. Avoid Kinking or Damaging the Hose While Inserting Nipple
Sg 5 Snap On The Cage
Snap the Cage into the Groove on the Nipple. When the Cage Has Been Correctly Installed in the Cage Groove, the Cage Will be Able to Rotate in the Groove
Sg 6 Slide The Clips
Slide the Clips Over the Cage Arms and into the Channels on Each Arm
Sg 7 Close The Clips
Use the FT1357 Clip Closing Pliers to Close the Clips. The Pliers Should be Positioned Squarely on the Clip Connection Points and Should Remain Square During the Closing of the Clip
Sg Caution
Failure to Follow these Assembly Instructions and/or the Use of Aeroquip® Hose with Fittings Supplied by Other Manufacturers May Result in Unreliable and Unsafe Hose Assemblies, Which May Result in Sudden or Unintended Escape of Refrigerant Gases. Persona
Sg Material
Clip Closing Pliers (FT1357), Guillotine Blade (FT1356) or Equivalent Cutting Tool, Refrigerant Oil Compatible with Refrigeration or A/C System. GH134 Multi-Refrigerant Hose, Appropriately Sized Clips (2 per Fitting) and Cage, Nipple Assembly (The (2) Bla
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
E-Z Clip Series Fitting, 5/8-18 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-02-0608S E-Z Clip Series SAE Fitting

5/8-18

08

1.62 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -08 Hose, Straight

FJ3057-03-0808S E-Z Clip Series SAE Fitting

3/4-16

08

2.02 in

E-Z Clip Series Fitting, 3/4-16 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-04-0810S E-Z Clip Series SAE Fitting

3/4-16

10

2.02 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -10 Hose, Straight

FJ3057-05-1010S E-Z Clip Series SAE Fitting

7/8-14

10

2.08 in

E-Z Clip Series Fitting, 7/8-14 Female SAE 45 deg Swivel, -12 Hose, Straight

FJ3057-06-1012S E-Z Clip Series SAE Fitting

7/8-14

12

2.08 in

E-Z Clip Series Fitting, 7/16-20 Female SAE 45 deg Swivel, -04 Hose, Straight

GA24048-4-4 E-Z Clip Series SAE Fitting

7/16-20

04

1.34 in

Product Questions & Answers (2)

Question by: Travis W on Nov 6, 2025, 3:20 PM
got a -06 hose and need a straight female swivel, is this the one with the 5/8-18 SAE 45 degree end?
Answer by: Customer Support on Nov 7, 2025, 8:09 PM
You are looking at a straight E-Z Clip fitting that mates to a -06 hose and uses a 5/8-18 female SAE 45 degree swivel on the threaded end.
Question by: Eddie S on Dec 25, 2025, 9:24 PM
Will this fitting work for standard AC lines in a '67 Mustang?
Answer by: Customer Support on Dec 26, 2025, 9:27 PM
This E-Z Clip series fitting is designed for specialized applications, offering a secure and reliable connection for -06 hoses, so it should work. Just make sure your AC lines are compatible with the 5/8-18 female SAE 45-degree swivel.
